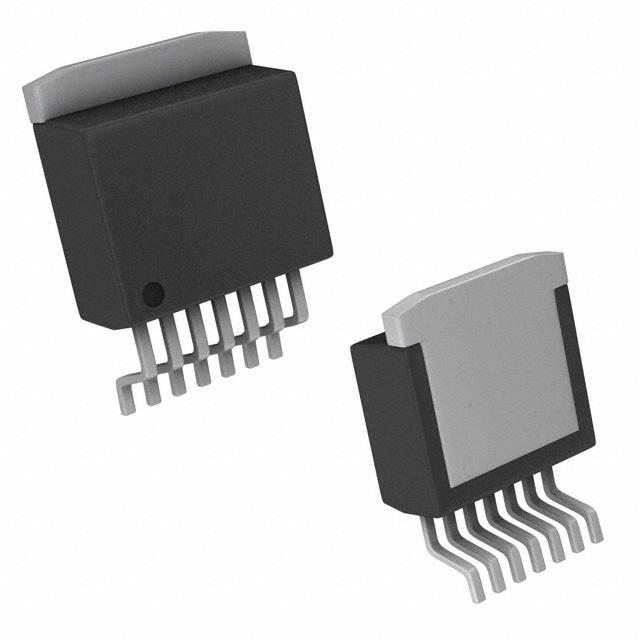

LM4752TS
Amplifier IC 2-Channel (Stereo) Class AB TO-263 (DDPAK-7)
Availability: In Stock
Package Type: TO-263-7
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LM4752TS by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LM4752TS
| Part Name | LM4752TS |
| Manufacturer | Texas Instruments |
| RoHS | No |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Amplifier Class | Class A-B |
| Maximum Power | 4 W, 7 (W) |
| Dimensions | 10.16 x 8.64 x 4.57 (mm) |
| Mounting Type | Surface Mount |
| Application | Speaker |
| Power Supply Type | Single |
| Output Type | 2 Channel Stereo |
| Input Signal Type | Single Ended |
| Typical Single Supply Voltage (V) | 12 V, 15 V, 18 V, 24 V, 28 V |
| Package Type | TO-263 |
| Minimum Operating Temperature | -40 °C |
| Amplifier Type | Audio Power Amplifier |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 7 |
| Output Signal Type | Single Ended |
Inventory for the LM4752TS by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
315 x $1.36
|
Visit Site | |
|
★ Featured
|
550
|
141 x $2.14
|
Visit Site | |
| Texas Instruments |
18,233
|
|
Visit Site |
No issues have been reported for the LM4752TS
