LM5020SD-1/NOPB
13-100V Wide Vin, Current Mode PWM Boost, Flyback, Sepic Controller
Availability: In Stock

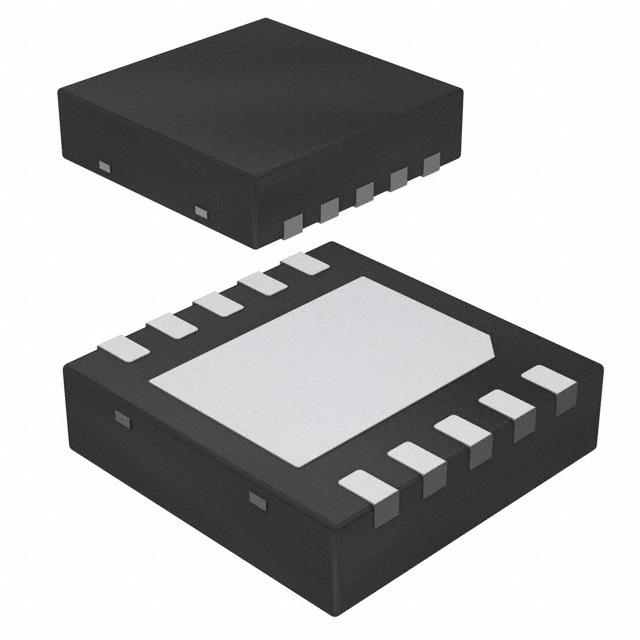

Package Type: WSON-10
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LM5020SD-1/NOPB by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the LM5020SD-1/NOPB
| Part Name | LM5020SD-1/NOPB |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Pin Count | 10 |
| Number Of Outputs | 1 |
| Maximum Duty Cycle | 80 (%) |
| Dimensions | 4 x 4 x 0.8 (mm) |
| Maximum Operating Supply Voltage (V) | 90 V |
| Fall Time | 15 (ns) |
| Control Method | Current |
| Minimum Operating Supply Voltage (V) | 13 V |
| Rise Time | 18 (ns) |
| Maximum Switching Frequency | 1000 kHz |
| Width | 4 (mm) |
| Length | 4 (mm) |
| Height | 0.8 (mm) |
| Package Type | LLP |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Pwm Controller Type | Current Mode |
| Maximum Operating Temperature | +125 °C |
| Output Current (A) | 1 A |
| Topology | Boost, Buck, Flyback, Forward, Inverting |
Inventory for the LM5020SD-1/NOPB by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,119
|
|
Visit Site | |
|
★ Featured
|
14,061
|
|
Visit Site | |
|
★ Featured
|
32,000
|
64 x $5.44
|
Visit Site | |
| Texas Instruments |
143,082
|
|
Visit Site |
No issues have been reported for the LM5020SD-1/NOPB
