LMC6024IM
Low Power CMOS Quad Operational Amplifier 14-SOIC -40 to 85
Availability: In Stock
Package Type: SOIC-14

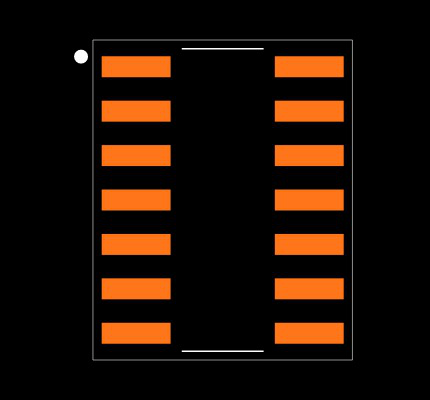

CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LMC6024IM by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LMC6024IM
| Part Name | LMC6024IM |
| Manufacturer | Texas Instruments |
| RoHS | No |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Typical Voltage Gain (V) | 106 dB |
| Typical Input Voltage Noise Density (V) | 42 (nV/√Hz) |
| Dimensions | 8.75 x 4 x 1.5 (mm) |
| Mounting Type | Surface Mount |
| Typical Slew Rate | 0.05 (V/µs) |
| Power Supply Type | Single |
| Number Of Channels Per Chip | 4 |
| Rail To Rail | No |
| Maximum Operating Frequency | 1 kHz |
| Typical Gain Bandwidth Product | 350 (kHz) |
| Typical Single Supply Voltage (V) | 5 → 15 V |
| Width | 4 (mm) |
| Length | 8.75 (mm) |
| Package Type | SOIC |
| Minimum Operating Temperature | -40 °C |
| Amplifier Type | Precision |
| Height | 1.5 (mm) |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 14 |
