LMC6482IN
Operational Amplifiers - Op Amps CMOS Dual Rail-to-Rail Input and Output Operational Amplifier 8-PDIP -40 to 85
Availability: Out of Stock
Package Type: PDIP-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LMC6482IN by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

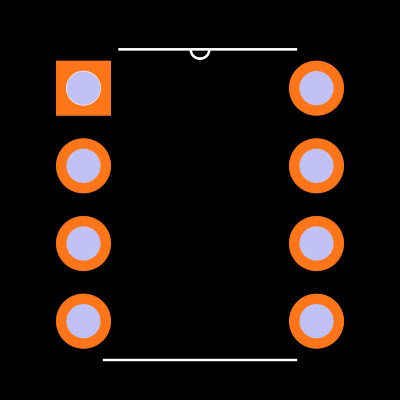

Footprint
No web preview
This Footprint is Available for

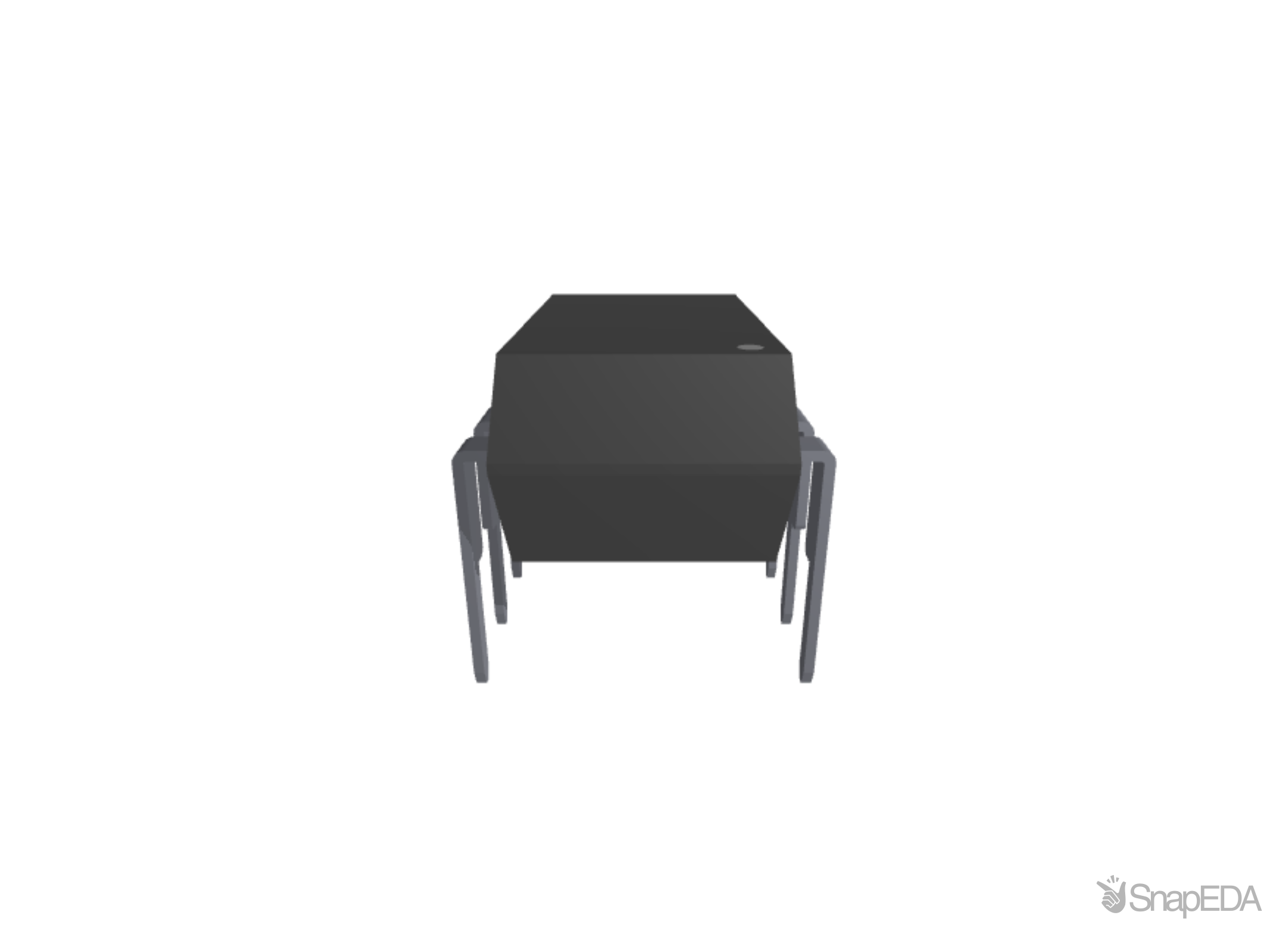

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LMC6482IN
| Part Name | LMC6482IN |
| Manufacturer | Texas |
| RoHS | No |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Rail To Rail | Rail to Rail Input/Output |
| Typical Input Voltage Noise Density (V) | 37 (nV/√Hz) |
| Typical Gain Bandwidth Product | 1.5 (MHz) |
| Dimensions | 9.81 x 6.35 x 3.3 (mm) |
| Mounting Type | Through Hole |
| Typical Slew Rate | 1.3 (V/µs) |
| Power Supply Type | Single |
| Number Of Channels Per Chip | 2 |
| Length | 9.81 (mm) |
| Height | 3.3 (mm) |
| Width | 6.35 (mm) |
| Typical Single Supply Voltage (V) | 5 → 15 V |
| Package Type | PDIP |
| Minimum Operating Temperature | -40 °C |
| Typical Voltage Gain (V) | 116.5 dB |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 8 |
No issues have been reported for the LMC6482IN
If you experienced any issues with the symbol or footprint, please report it.
