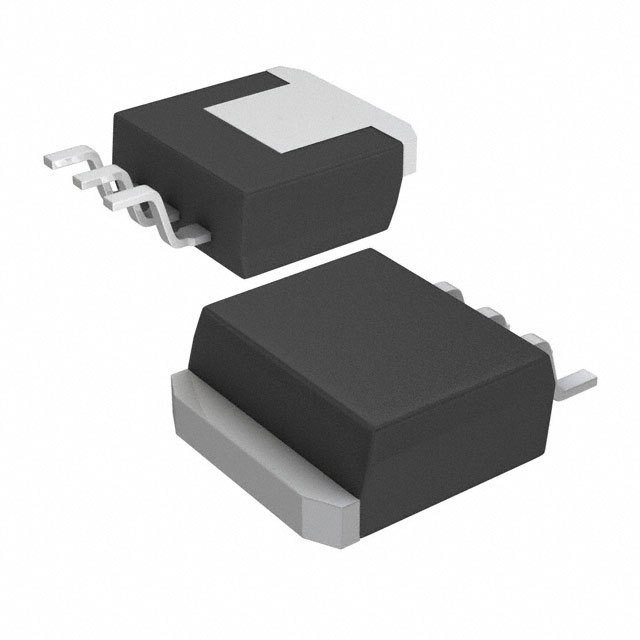

LMS1587CS-1.5/NOPB
3-A, 13-V, linear voltage regulator
Availability: In Stock
Package Type: TO263-3
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LMS1587CS-1.5/NOPB by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the LMS1587CS-1.5/NOPB
| Part Name | LMS1587CS-1.5/NOPB |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Polarity | Positive |
| Number Of Outputs | 1 |
| Load Regulation | 0.3 % |
| Dimensions | 10.16 x 8.64 x 4.57 (mm) |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +125 °C |
| Line Regulation | 0.2 % |
| Output Type | Fixed |
| Height | 4.57 (mm) |
| Width | 8.64 (mm) |
| Length | 10.16 (mm) |
| Output Voltage (V) | 1.5 V |
| Package Type | D2PAK (TO-263) |
| Minimum Operating Temperature | 0 °C |
| Maximum Output Current (A) | 3 (A) |
| Pin Count | 3 |
| Maximum Input Voltage (V) | 13 V |
| Minimum Input Voltage (V) | 2.4 V |
Inventory for the LMS1587CS-1.5/NOPB by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
880
|
|
Visit Site | |
|
★ Featured
|
1,254
|
157 x $1.92
|
Visit Site | |
| Arrow Europe |
360
|
45 x $1.61
|
Visit Site | |
| Texas Instruments |
19,410
|
|
Visit Site |
No issues have been reported for the LMS1587CS-1.5/NOPB
