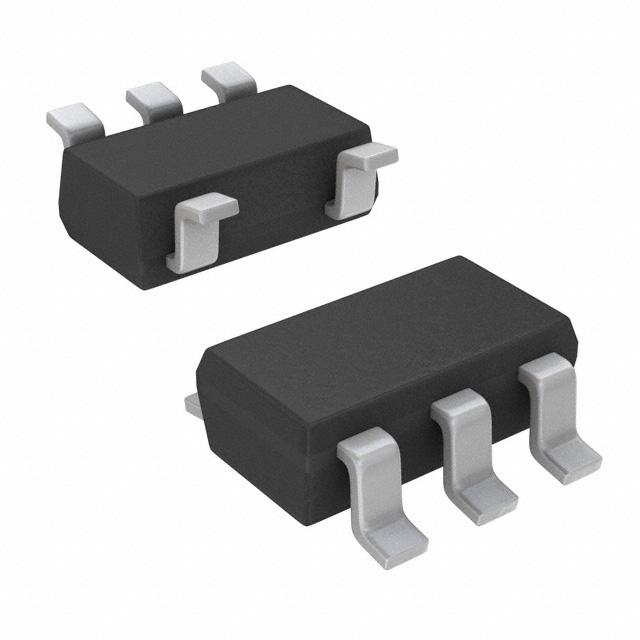

LMT87DCKT
±2°C 2.7V to 5.5V analog output temperature sensor with -13.6 mV/°C gain
Availability: In Stock
Package Type: SC70-5
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LMT87DCKT by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LMT87DCKT
| Part Name | LMT87DCKT |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Life Cycle Status | End of Life |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 2.15 x 1.4 x 1 (mm) |
| Maximum Operating Supply Voltage (V) | 5.5 V |
| Operating Temperature Range | -50 to +150 °C |
| Mounting Type | Surface Mount |
| Minimum Operating Supply Voltage (V) | 2.7 V |
| Output Type | Voltage |
| Height | 1 (mm) |
| Width | 1.4 (mm) |
| Length | 2.15 (mm) |
| Sensor Function | Temperature |
| Sensor Gain | -13.6 (mV/°C) |
| Interface Type | Analogue |
| Minimum Operating Temperature | -50 °C |
| Package Type | SC-70 |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 5 |
| Accuracy | ±2.7 (°C) |
Inventory for the LMT87DCKT by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
7,710
|
|
Visit Site | |
|
★ Featured
|
5,620
|
1,050 x $0.29
|
Visit Site | |
| Texas Instruments |
36,872
|
|
Visit Site |
No issues have been reported for the LMT87DCKT
