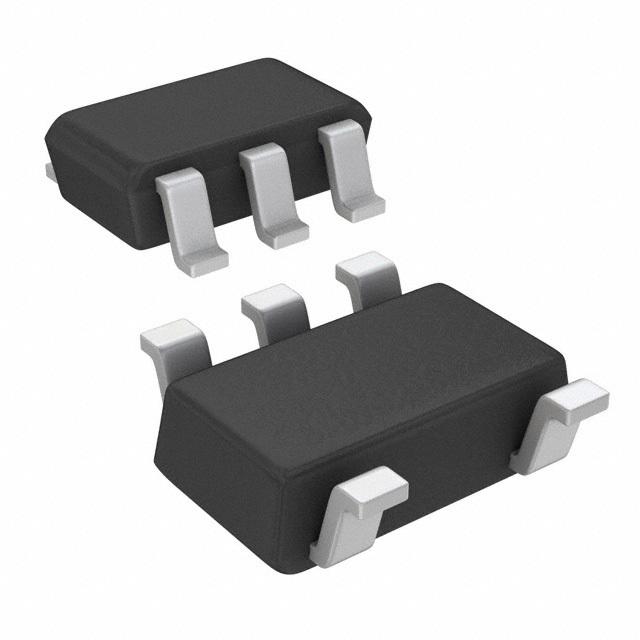

LMV321ILT
Standard (General Purpose) Amplifier 1 Circuit Rail-to-Rail SOT-23-5
Availability: In Stock
Package Type: SOT-23-5
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LMV321ILT by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

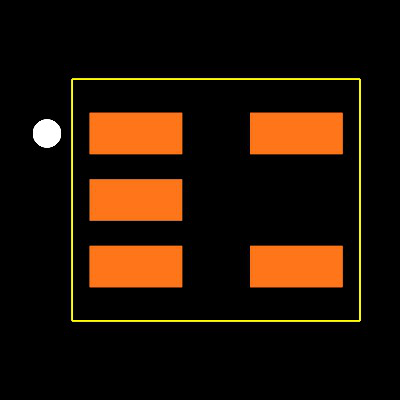

BuildFootprint
No web preview
This Footprint is Available for

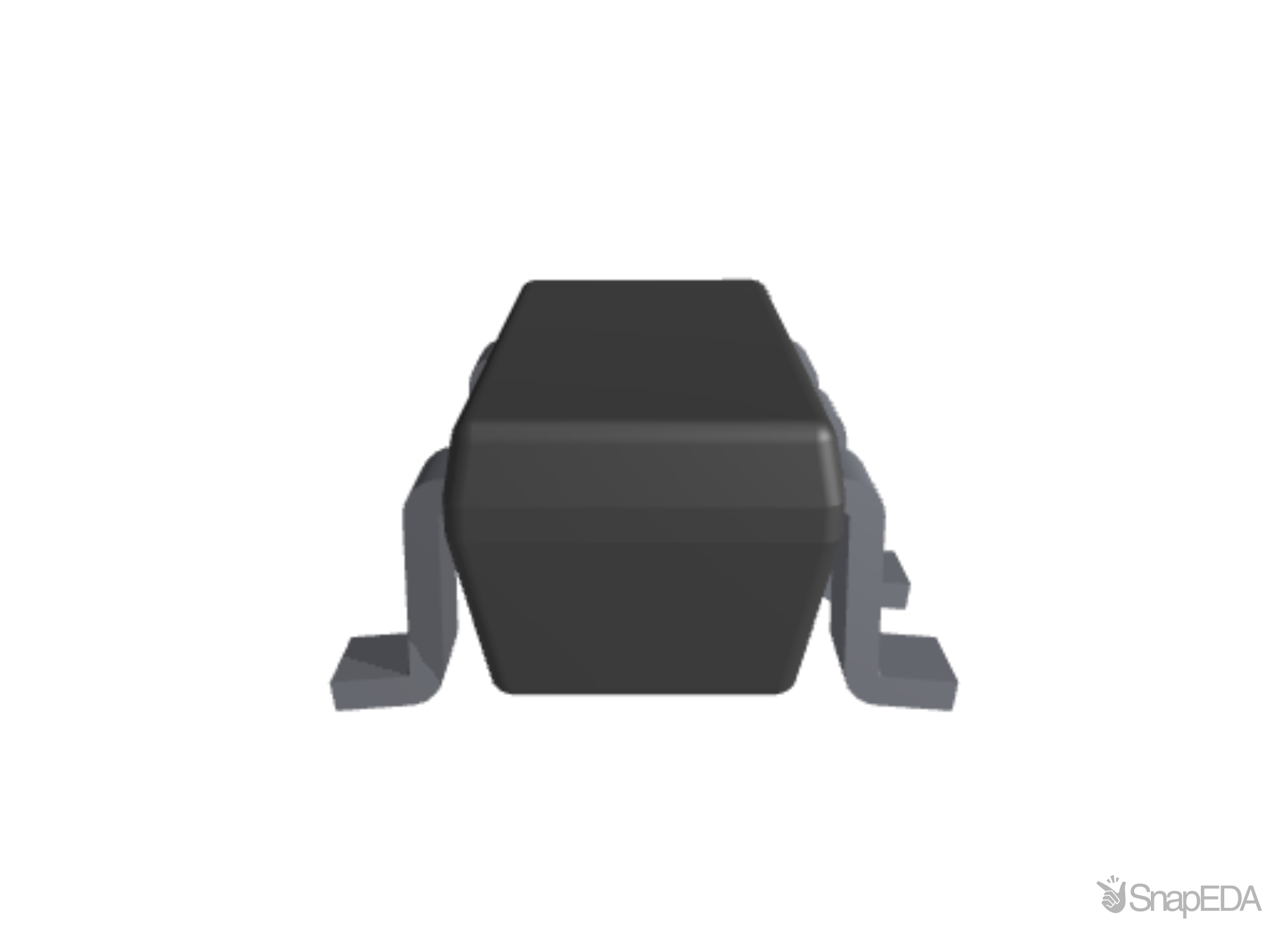

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LMV321ILT
| Part Name | LMV321ILT |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Typical Voltage Gain (V) | 97 dB |
| Typical Input Voltage Noise Density (V) | 40 (nV/√Hz) |
| Dimensions | 3 x 1.75 x 1.3 (mm) |
| Mounting Type | Surface Mount |
| Typical Slew Rate | 0.45 (V/µs) |
| Power Supply Type | Single |
| Number Of Channels Per Chip | 1 |
| Rail To Rail | Rail to Rail Input/Output |
| Typical Gain Bandwidth Product | 1.3 (MHz) |
| Typical Single Supply Voltage (V) | 3 V, 5 V |
| Width | 1.75 (mm) |
| Length | 3 (mm) |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40 °C |
| Amplifier Type | Low Power |
| Height | 1.3 (mm) |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 5 |
