LMV821M7/NOPB
Single, 5.5-V, 5.6-MHz, RRO operational amplifier
Availability: In Stock
Package Type: SC70-5
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LMV821M7/NOPB by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

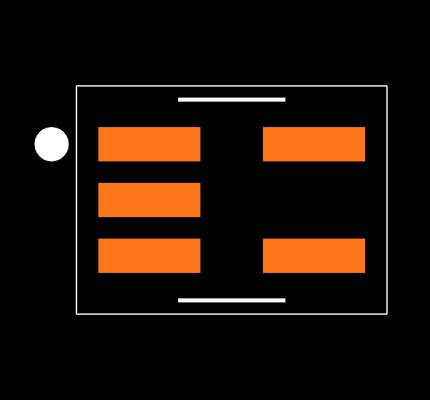

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LMV821M7/NOPB
| Part Name | LMV821M7/NOPB |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Rail To Rail | Rail to Rail Output |
| Typical Input Voltage Noise Density (V) | 24 (nV/√Hz) |
| Typical Gain Bandwidth Product | 5.6 (MHz) |
| Dimensions | 2 x 1.25 x 0.9 (mm) |
| Mounting Type | Surface Mount |
| Typical Slew Rate | 2 (V/µs) |
| Power Supply Type | Single |
| Number Of Channels Per Chip | 1 |
| Length | 2 (mm) |
| Height | 0.9 (mm) |
| Width | 1.25 (mm) |
| Typical Single Supply Voltage (V) | 2.5 → 5.5 V |
| Package Type | SC-70 |
| Minimum Operating Temperature | -40 °C |
| Amplifier Type | Low Power |
| Typical Voltage Gain (V) | 105 dB |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 5 |
