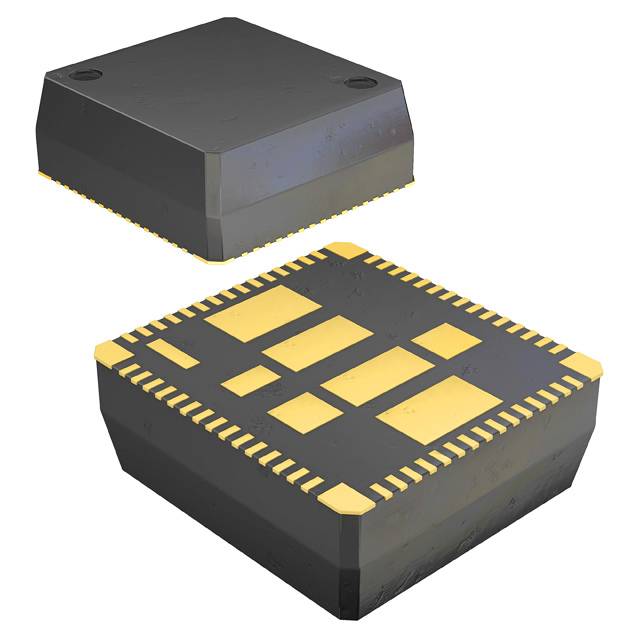

LMZ31530RLGT
3V to 14.5V, 30A Step-Down Power Module in 15x16x5.8mm QFN Package
Availability: In Stock
Package Type: B4QFN-72
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LMZ31530RLGT by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the LMZ31530RLGT
| Part Name | LMZ31530RLGT |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 16.15 x 15.15 x 2.5 (mm) |
| Width | 15.15 (mm) |
| Maximum Output Voltage (V) | 3.6 V |
| Number Of Outputs | 1 |
| Load Regulation | +0.4 % |
| Output Type | Adjustable |
| Maximum Switching Frequency | 850 kHz |
| Efficiency | 96 (%) |
| Package Type | BQFN |
| Regulator Function | Buck Controller |
| Maximum Operating Temperature | +85 °C |
| Line Regulation | ±0.1 % |
| Length | 16.15 (mm) |
| Minimum Output Voltage (V) | 0.6 V |
| Pin Count | 72 |
| Mounting Type | Surface Mount |
| Height | 2.5 (mm) |
| Switching Regulator | Yes |
| Minimum Operating Temperature | -40 °C |
| Maximum Output Current (A) | 30 (A) |
| Maximum Input Voltage (V) | 14.5 V |
| Minimum Input Voltage (V) | 3 V |
