LNK6773V
Ac/Dc Converter, Flyback, Edip-11
Availability: In Stock
Package Type: SDIP-12
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LNK6773V by Power Integrations and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

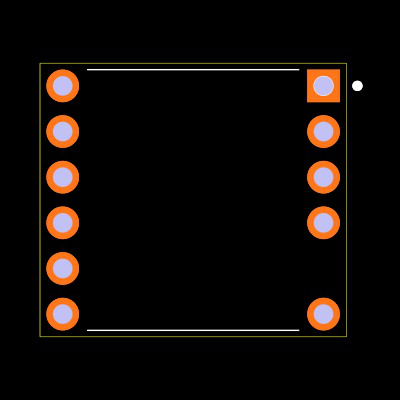

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LNK6773V
| Part Name | LNK6773V |
| Manufacturer | Power Integrations |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Minimum Input Voltage (V) | 85 V ac |
| Dimensions | 10.16 x 8.89 x 2.34 (mm) |
| Mounting Type | Through Hole |
| Operating Temperature Range | -40 → +150 °C |
| Maximum Operating Temperature | +150 °C |
| Input Voltage Range (V) | 85 → 265 V ac |
| Output Voltage Range (V) | 12 V dc |
| Height | 2.34 (mm) |
| Typical Operating Supply Voltage (V) | 230 V ac |
| Width | 8.89 (mm) |
| Length | 10.16 (mm) |
| Current Limit (A) | 0.82 (A) |
| Package Type | eDIP-12B |
| Maximum Output Voltage (V) | 12 V dc |
| Minimum Operating Temperature | -40 °C |
| Output Current Range (A) | Maximum of 2.5 A |
| Maximum Output Current (A) | 2.5 (A) |
| Pin Count | 11 |
| Maximum Input Voltage (V) | 265 V ac |
Inventory for the LNK6773V by Power Integrations from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
|
Visit Site | |
|
★ Featured
|
12,200
|
540 x $0.72
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Farnell UK |
907
|
|
Visit Site | |
| Newark |
907
|
|
Visit Site | |
| RS UK |
6,429
|
48 x $0.75
|
Visit Site | |
| element14 Singapore |
907
|
|
Visit Site |
No issues have been reported for the LNK6773V
If you experienced any issues with the symbol or footprint, please report it.
