LP38512MR-ADJ/NOPB
1.5-A, adjustable ultra-low-dropout voltage regulator with low noise & enable
Availability: In Stock
Package Type: HSOIC-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LP38512MR-ADJ/NOPB by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

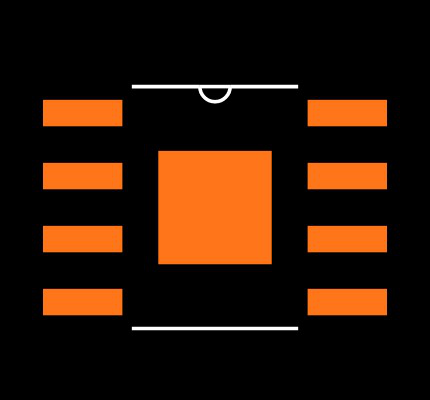

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LP38512MR-ADJ/NOPB
| Part Name | LP38512MR-ADJ/NOPB |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Polarity | Positive |
| Number Of Outputs | 1 |
| Load Regulation | 0.20 %/A |
| Dimensions | 4.9 x 3.9 x 1.47 (mm) |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +125 °C |
| Line Regulation | 0.06 %/V |
| Output Type | Adjustable |
| Height | 1.47 (mm) |
| Width | 3.9 (mm) |
| Length | 4.9 (mm) |
| Output Voltage (V) | 0.5 → 4.5 V |
| Package Type | PSOP |
| Minimum Operating Temperature | -40 °C |
| Minimum Input Voltage (V) | 2.25 V |
| Maximum Output Current (A) | 1.5 (A) |
| Pin Count | 8 |
| Maximum Input Voltage (V) | 5.5 V |
| Accuracy | ±2 (%) |
