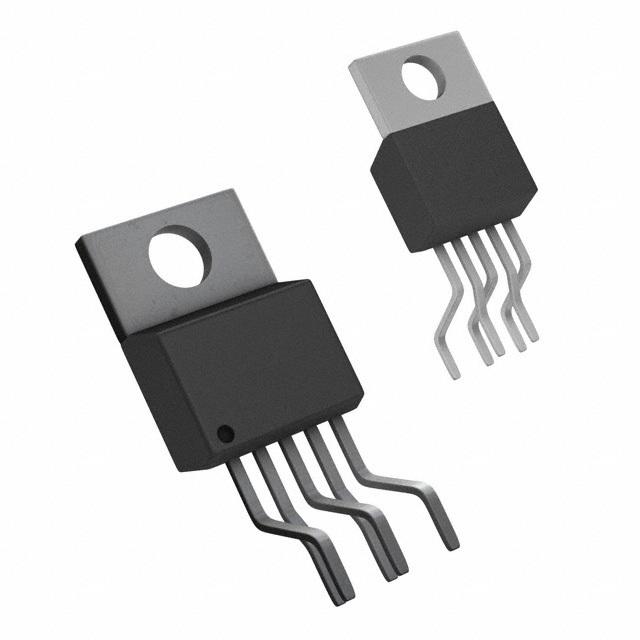

LP3966ET-ADJ
3-A, high-accuracy, low-dropout voltage regulator with power good & enable 5-TO-220 -40 to 125
Availability: In Stock
Package Type: TO-220-5
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LP3966ET-ADJ by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LP3966ET-ADJ
| Part Name | LP3966ET-ADJ |
| Manufacturer | Texas Instruments |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Polarity | Positive |
| Number Of Outputs | 1 |
| Load Regulation | 0.06 % |
| Dimensions | 10.16 x 4.57 x 8.64 (mm) |
| Mounting Type | Through Hole |
| Maximum Operating Temperature | +125 °C |
| Line Regulation | 0.02 % |
| Regulator Type | Low Dropout Voltage |
| Output Type | Adjustable |
| Height | 8.64 (mm) |
| Width | 4.57 (mm) |
| Length | 10.16 (mm) |
| Output Voltage (V) | 1.2 → 5 V |
| Package Type | TO-220 |
| Minimum Operating Temperature | -40 °C |
| Minimum Input Voltage (V) | 2.5 V |
| Maximum Output Current (A) | 3 (A) |
| Pin Count | 5 |
| Maximum Input Voltage (V) | 7 V |
| Accuracy | ±1.5 (%) |
Inventory for the LP3966ET-ADJ by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
6,743
|
82 x $3.68
|
Visit Site | |
|
★ Featured
|
16,100
|
123 x $2.82
|
Visit Site | |
| Verical |
6,743
|
|
Visit Site |
No issues have been reported for the LP3966ET-ADJ
