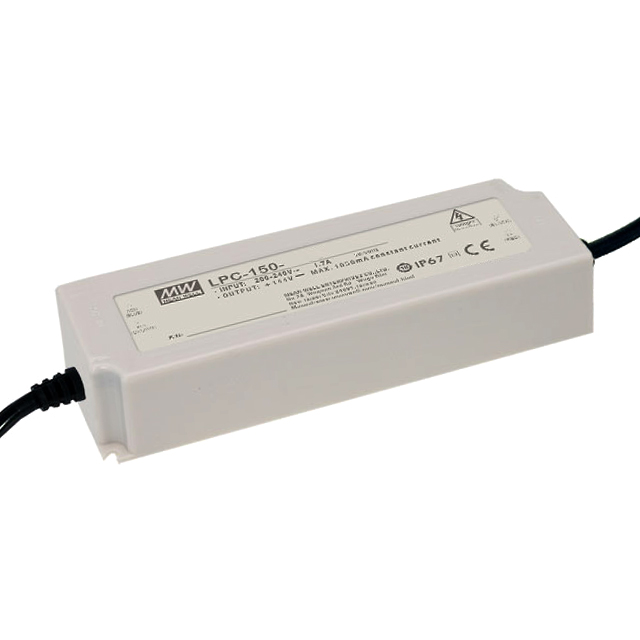

LPC-150-2100
AC-DC Single output LED driver Constant Current (CC); Universal AC input; Output 2.1A at 36-72Vdc
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LPC-150-2100 by Mean Well and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LPC-150-2100
| Part Name | LPC-150-2100 |
| Manufacturer | Mean Well |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Led Driver Type | LED Driver |
| Output Current (A) | 2.1 (A) |
| Voltage Rating (V) | 180 → 305 V ac, 254 → 431 V dc |
| Ip Rating | IP67 |
| Ac Or Dc Input Voltage (V) | ac, dc |
| Maximum Output Power | 151.2 (W) |
| Dimmable | No |
| Distrelec Product Id | 30134899 |
| Operation | Constant Current |
| Output Voltage (V) | 36 → 72 (V) |
| Input Voltage (V) | 180 → 305 V ac, 254 → 431 V dc |
