LPR4150AL
Gyroscope X (Pitch), Y (Roll) ±1500, 6000 140Hz Analog Voltage 28-LGA (4x5)
Availability: In Stock
Package Type: TFLGA-28
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LPR4150AL by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

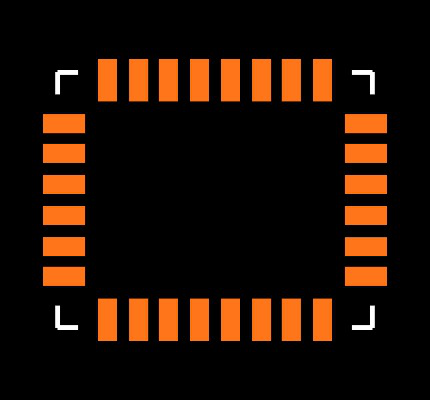

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LPR4150AL
| Part Name | LPR4150AL |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Axis | 2 |
| Mounting Type | Surface Mount |
| Maximum Operating Supply Voltage (V) | 3.6 V |
| Sensitivity | 0.167 (mV/°/s) |
| Minimum Operating Supply Voltage (V) | 2.7 V |
| Package Type | PLGA |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 28 |
