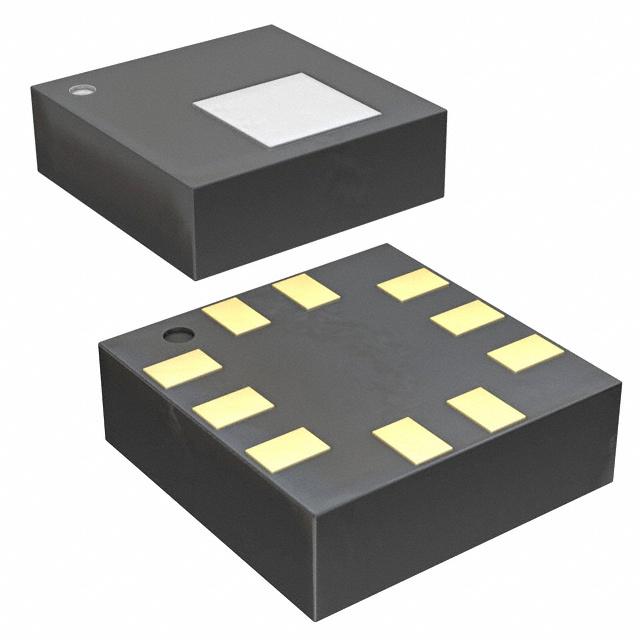

LPS22HBTR
Pressure Sensor 3.77PSI ~ 18.27PSI (26kPa ~ 126kPa) Absolute 24 b 10-WFLGA Exposed Pad
Availability: In Stock
Package Type: WFLGA-10
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LPS22HBTR by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LPS22HBTR
| Part Name | LPS22HBTR |
| Manufacturer | STMicroelectronics |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Dimensions | 2 x 2 x 0.8 (mm) |
| Maximum Operating Supply Voltage (V) | 3.6 V |
| Minimum Operating Pressure | 26 (kPa) |
| Maximum Overload Pressure | 2000 (kPa) |
| Maximum Operating Pressure | 126 (kPa) |
| Package Type | HLGA |
| Maximum Output Voltage (V) | 6.7 V |
| Minimum Operating Temperature | -40 °C |
| Minimum Output Voltage (V) | 5.7 V |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 10 |
| Sensor Type | Absolute Pressure Sensors |
Inventory for the LPS22HBTR by STMicroelectronics from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
|
Visit Site | |
|
★ Featured
|
68,780
|
560 x $0.54
|
Visit Site | |
| Arrow Electronics |
964
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Newark |
214
|
|
Visit Site | |
| Verical |
964
|
|
Visit Site |
No issues have been reported for the LPS22HBTR
If you experienced any issues with the symbol or footprint, please report it.
