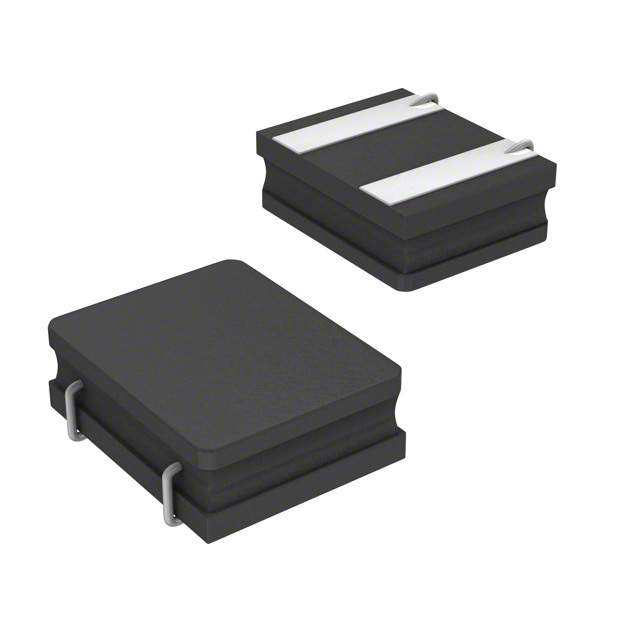

LQH2HPZ1R5MGRL
1.5 µH Shielded Drum Core, Wirewound Inductor 1.85 A 104.4mOhm Max 1008 (2520 Metric)
Availability: In Stock
Package Type: NONSTANDARD
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LQH2HPZ1R5MGRL by Murata and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LQH2HPZ1R5MGRL
| Part Name | LQH2HPZ1R5MGRL |
| Manufacturer | Murata |
| Sample Link | https://my.murata.com/en/web/samplerequest/cart-requesthistory?pno=LQH2HPZ1R5MGR%23 |
| Simsurfing Link | https://ds.murata.co.jp/simsurfing/gateway.html?partnumbers=%5B%22LQH2HPZ1R5MGRL%22%5D&lcid=en-us&graphop=mainall&focuspartnumberonlist=true&rgear=ytgvkjg |
| Series | LQH2HPZ_GR |
| RoHS | True |
| Product Link | https://www.murata.com/en-us/products/productdetail?partno=LQH2HPZ1R5MGR%23 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Dc Resistance | 100 (mΩ) |
| Inductor Construction | Wire-Wound |
| Dimensions | 2.5 x 2 x 0.9 (mm) |
| Inductance | 1.5 μH |
| Shielded | Yes |
| Series | LQH |
| Package Case | 2520 |
| Length | 2.5 (mm) |
| Height | 0.9 (mm) |
| Maximum Dc Current (A) | 1.85 (A) |
| Depth | 2 (mm) |
| Core Material | Ferrite |
| Minimum Operating Temperature | -40 (°C) |
| Maximum Self Resonant Frequency | Minimum of 90 (MHz) |
| Maximum Operating Temperature | +105 (Ambient) °C, +125 (Product) °C |
| Moulded | Yes |
Inventory for the LQH2HPZ1R5MGRL by Murata from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Avnet America |
|
|
Visit Site | |
| Farnell UK |
|
3,000 x $0.25
|
Visit Site | |
| TME |
|
|
Visit Site | |
| TTI Europe |
3,000
|
|
Visit Site |
No issues have been reported for the LQH2HPZ1R5MGRL
