LQH2MCN100K02L

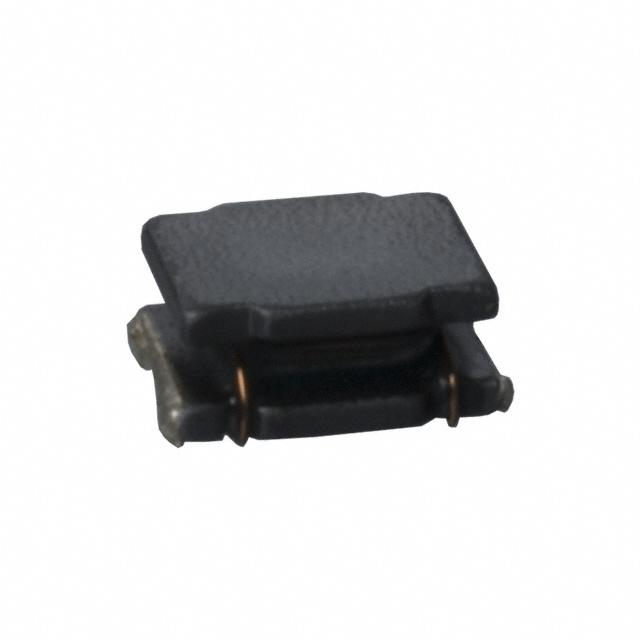

10 µH Unshielded Drum Core, Wirewound Inductor 225 mA 1.56Ohm Max 0806 (2016 Metric)
Availability: In Stock
Package Type: NONSTANDARD
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LQH2MCN100K02L by Murata and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

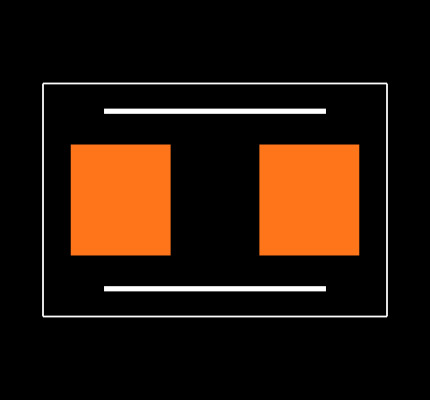

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LQH2MCN100K02L
| Part Name | LQH2MCN100K02L |
| Manufacturer | Murata |
| Category | Surface Mount Inductors |
| Sample Link | https://my.murata.com/en/web/samplerequest/cart-requesthistory?pno=LQH2MCN100K02%23 |
| Simsurfing Link | https://ds.murata.co.jp/simsurfing/gateway.html?partnumbers=%5B%22LQH2MCN100K02L%22%5D&lcid=en-us&graphop=mainall&focuspartnumberonlist=true&rgear=ytgvkjg |
| Series | LQH2MCN_02 |
| Product Link | https://www.murata.com/en-us/products/productdetail?partno=LQH2MCN100K02%23 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Dc Resistance | 1.56 (Ω) |
| Inductor Construction | Wire-Wound |
| Dimensions | 2 x 1.6 x 0.9 (mm) |
| Tolerance | ±10 (%) |
| Shielded | No |
| Series | LQH2MC_02 |
| Length | 2 (mm) |
| Height | 0.9 (mm) |
| Maximum Dc Current (A) | 225 (mA) |
| Depth | 1.6 (mm) |
| Core Material | Ferrite |
| Inductance | 10 μH |
| Maximum Self Resonant Frequency | 48 (MHz) |
| Maximum Operating Temperature | +85 (°C) |
| Minimum Operating Temperature | -40 (°C) |
| Package/Case | 0806 |
