LQH32CN331K23L
Inductor Power Chip Unshielded Wirewound 330uH 10% 1MHz Ferrite 60mA 13Ohm DCR 1210 Embossed T/R
Availability: In Stock
Package Type: NONSTANDARD
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LQH32CN331K23L by Murata and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

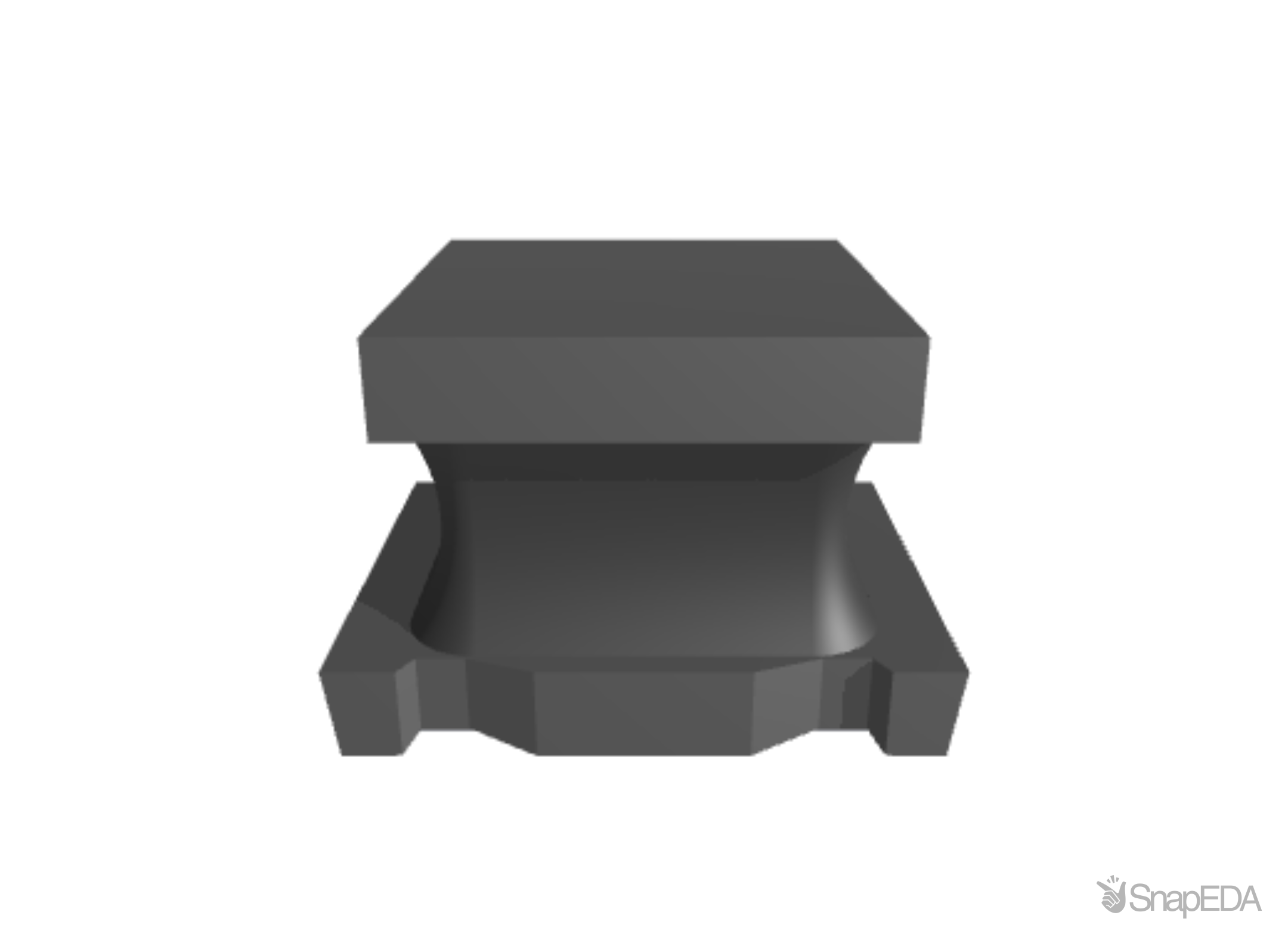

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LQH32CN331K23L
| Part Name | LQH32CN331K23L |
| Manufacturer | Murata |
| Category | Surface Mount Inductors |
| Series | LQH32CN_23 |
| Product Link | https://www.murata.com/en-us/products/productdetail?partno=LQH32CN331K23%23 |
| RoHS | True |
| Sample Link | https://my.murata.com/en/web/samplerequest/cart-requesthistory?pno=LQH32CN331K23%23 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Dc Resistance | 13 (Ω) |
| Inductor Construction | Wire-Wound |
| Dimensions | 3.2 x 2.5 x 2 (mm) |
| Shielded | No |
| Series | LQH32CN_23 |
| Depth | 2.5 (mm) |
| Height | 2 (mm) |
| Package Case | 1210 (3225M) |
| Length | 3.2 (mm) |
| Core Material | Ferrite |
| Inductance | 330 μH |
| Maximum Self Resonant Frequency | 5.6 (MHz) |
| Maximum Dc Current (A) | 60 (mA) |
| Maximum Operating Temperature | +85 (°C) |
| Tolerance | ±10 (%) |
| Minimum Operating Temperature | -40 (°C) |
Inventory for the LQH32CN331K23L by Murata from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,334
|
|
Visit Site | |
|
★ Featured
|
2,572
|
|
Visit Site | |
|
★ Featured
|
29,890
|
5,965 x $0.05
|
Visit Site | |
| Verical |
1,103
|
|
Visit Site |
No issues have been reported for the LQH32CN331K23L
