LQH32MN680J23L

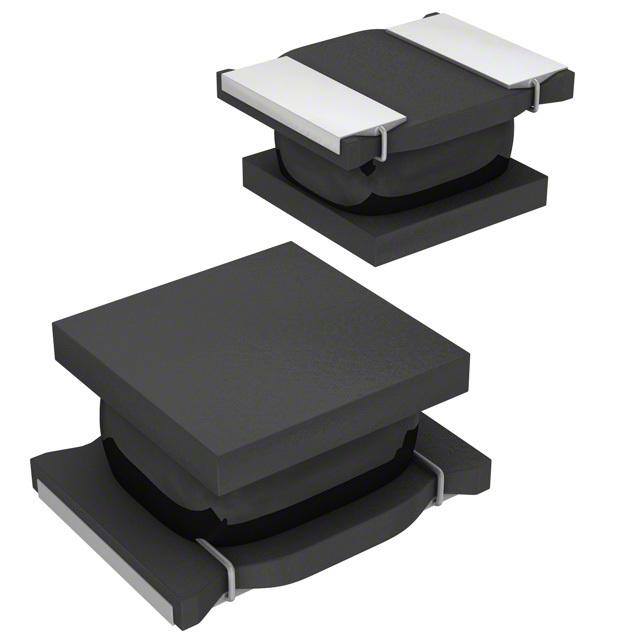

INDUCTOR, 1210 CASE, 68UH; Inductance:68µH; Inductance Tolerance:± 5%; DC Resistance Max:5.5ohm; DC Current Rating:80mA; Q Factor:40; Self Resonant Frequency:9MHz; Q Test Frequency:1MHz; Core Material:Ferrite; Inductor Case Style:1210; No. of Pins:2; Core Material:Ferrite; DC Current Max:80mA; External Depth:2mm; External Length / Height:3.2mm; External Width:2.5mm; Inductor Type:Wirewound; Operating Temperature Max:85°C; Operating Temperature Min:-25°C; Package / Case:1210; Q @ Vr F:40; Q Factor @ Frequency:40 @ 1MHz; Resistance:5.5ohm; Resonant Frequency:9MHz; Termination Type:SMD; Test Frequency:1MHz; Tolerance +:5%; Tolerance -:5%
Availability: In Stock
Package Type: NONSTANDARD
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LQH32MN680J23L by Murata and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LQH32MN680J23L
| Part Name | LQH32MN680J23L |
| Manufacturer | Murata |
| Category | Surface Mount Inductors |
| Series | LQH32MN_23 |
| Product Link | https://www.murata.com/en-us/products/productdetail?partno=LQH32MN680J23%23 |
| RoHS | True |
| Sample Link | https://my.murata.com/en/web/samplerequest/cart-requesthistory?pno=LQH32MN680J23%23 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Dc Resistance | 5.5 (Ω) |
| Inductor Construction | Wire-Wound |
| Dimensions | 3.2 x 2.5 x 2 (mm) |
| Maximum Dc Current (A) | 80 (mA) |
| Series | LQH32MN |
| Minimum Quality Factor | 40 |
| Depth | 2.5 (mm) |
| Height | 2 (mm) |
| Package Case | 1210 (3225M) |
| Length | 3.2 (mm) |
| Core Material | Ferrite |
| Inductance | 68 μH |
| Maximum Self Resonant Frequency | 9 (MHz) |
| Maximum Operating Temperature | +85 (°C) |
| Tolerance | ±5 (%) |
| Minimum Operating Temperature | -40 (°C) |
