LQH32PNR47NNCL
Inductor with Inductance: 0.47uH Tol. +/-30%, Package: 1210 (3225)
Availability: Out of Stock
Package Type: NONSTANDARD
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LQH32PNR47NNCL by Murata and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

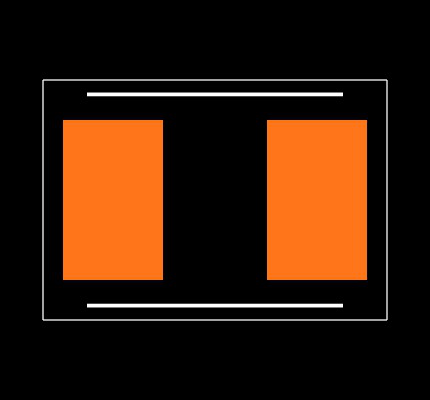

Footprint
No web preview
This Footprint is Available for

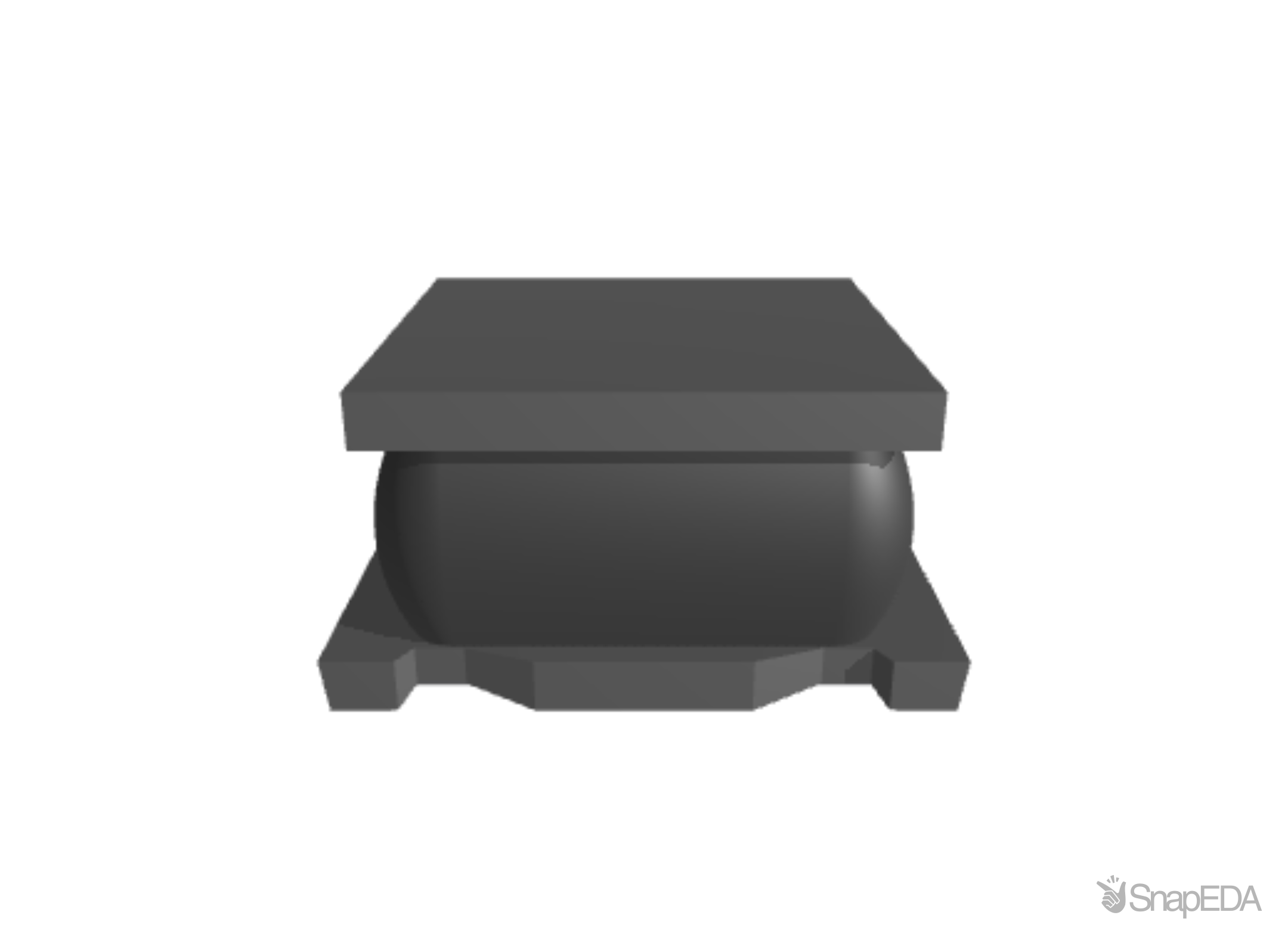

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LQH32PNR47NNCL
| Part Name | LQH32PNR47NNCL |
| Manufacturer | Murata |
| Sample Link | https://my.murata.com/en/web/samplerequest/cart-requesthistory?pno=LQH32PNR47NNC%23 |
| Series | LQH32PN_NC |
| Simsurfing Link | https://ds.murata.co.jp/simsurfing/gateway.html?partnumbers=%5B%22LQH32PNR47NNCL%22%5D&lcid=en-us&graphop=mainall&focuspartnumberonlist=true&rgear=ytgvkjg |
| RoHS | True |
| Product Link | https://www.murata.com/en-us/products/productdetail?partno=LQH32PNR47NNC%23 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Dc Resistance | 24 (mΩ) |
| Inductor Construction | Wire-Wound |
| Dimensions | 3.2 x 2.5 x 1.55 (mm) |
| Tolerance | ±30 (%) |
| Inductance | 470 nH |
| Shielded | Yes |
| Series | LQH32PN_NC |
| Package Case | 3225 |
| Length | 3.2 (mm) |
| Height | 1.55 (mm) |
| Maximum Dc Current (A) | 4.4 (A) |
| Depth | 2.5 (mm) |
| Core Material | Ferrite |
| Minimum Operating Temperature | -40 (°C) |
| Maximum Self Resonant Frequency | 100 (MHz) |
| Maximum Operating Temperature | +125 (°C) |
| Moulded | Yes |
No issues have been reported for the LQH32PNR47NNCL
If you experienced any issues with the symbol or footprint, please report it.
