LQM18FN2R2M00D
Inductor with Inductance: 2.2uH Tol. +/-20%, Package: 0603 (1608)
Availability: In Stock
Package Type: 1608
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LQM18FN2R2M00D by Murata and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

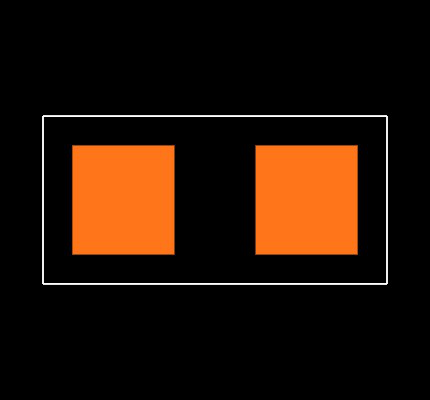

Footprint
No web preview
This Footprint is Available for

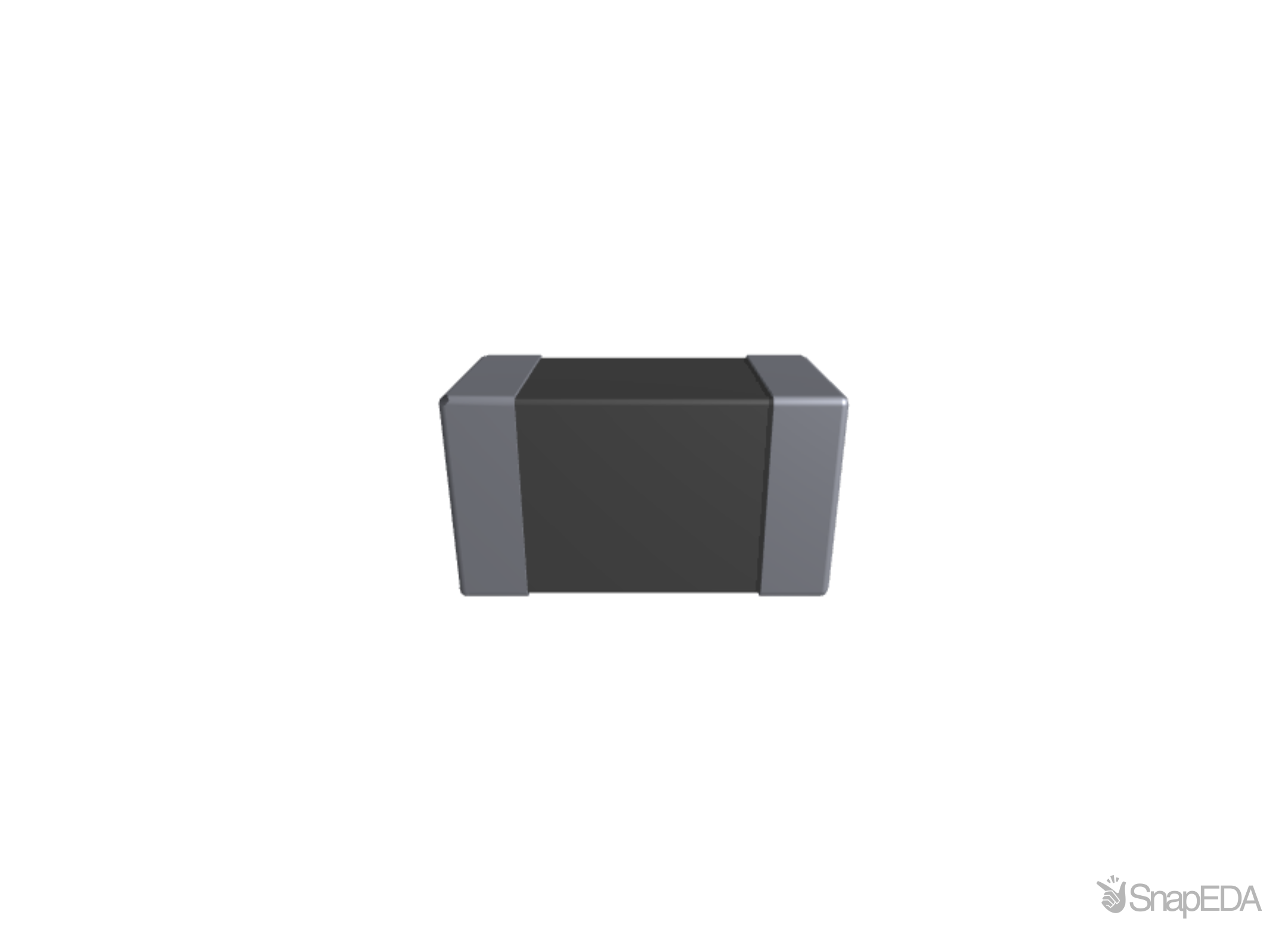

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LQM18FN2R2M00D
| Part Name | LQM18FN2R2M00D |
| Manufacturer | Murata Electronics |
| Category | Surface Mount Inductors |
| Sample Link | https://my.murata.com/en/web/samplerequest/cart-requesthistory?pno=LQM18FN2R2M00%23 |
| Series | LQM18FN_00 |
| Product Link | https://www.murata.com/en-us/products/productdetail?partno=LQM18FN2R2M00%23 |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Dc Resistance | 400 (mΩ) |
| Inductor Construction | Multilayer |
| Dimensions | 1.6 x 0.8 x 0.8 (mm) |
| Tolerance | ±20 (%) |
| Inductance | 2.2 μH |
| Maximum Dc Current (A) | 120 (mA) |
| Series | LQM18N |
| Length | 1.6 (mm) |
| Height | 0.8 (mm) |
| Package Case | 0603 (1608M) |
| Depth | 0.8 (mm) |
| Core Material | Ferrite |
| Minimum Operating Temperature | -55 (°C) |
| Maximum Self Resonant Frequency | 80 (MHz) |
| Maximum Operating Temperature | +125 (°C) |
Inventory for the LQM18FN2R2M00D by Murata from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Farnell UK |
|
1 x $0.11
|
Visit Site | |
| RS UK |
1,150
|
|
Visit Site | |
| Rutronik |
|
20,000 x $0.04
|
Visit Site | |
| TME |
17
|
|
Visit Site | |
| TTI Americas |
20,000
|
4,000 x $0.05
|
Visit Site | |
| element14 Singapore |
50
|
|
Visit Site |
No issues have been reported for the LQM18FN2R2M00D
If you experienced any issues with the symbol or footprint, please report it.
