LQM2HPN2R2MG0L
Inductor with Inductance: 2.2uH Tol. +/-20%, Package: 1008 (2520)
Availability: In Stock
Package Type: 2520
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LQM2HPN2R2MG0L by Murata and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

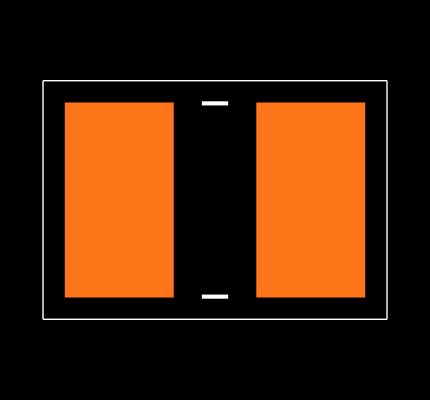

Footprint
No web preview
This Footprint is Available for

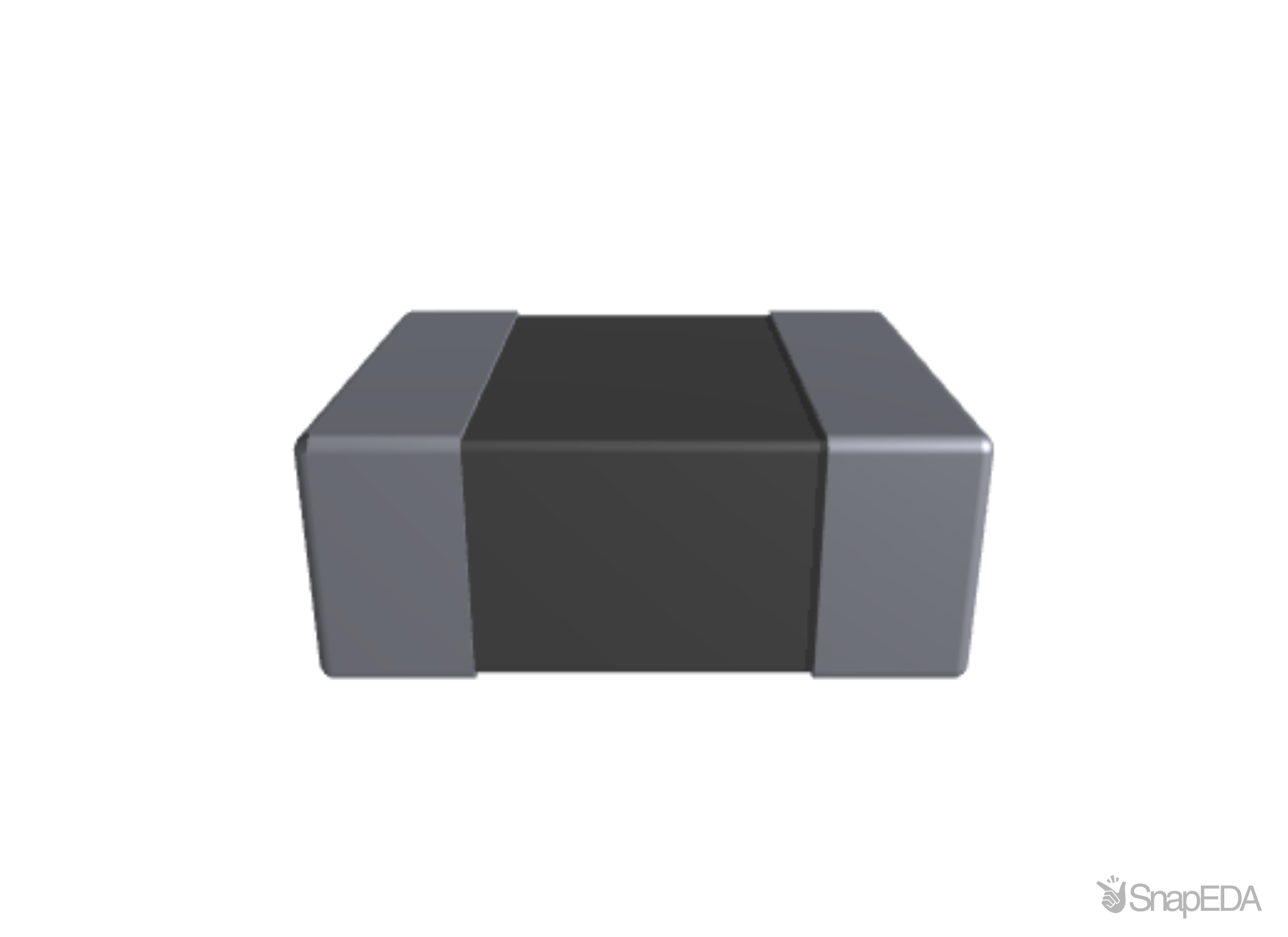

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LQM2HPN2R2MG0L
| Part Name | LQM2HPN2R2MG0L |
| Manufacturer | Murata |
| Category | Surface Mount Inductors |
| Sample Link | https://my.murata.com/en/web/samplerequest/cart-requesthistory?pno=LQM2HPN2R2MG0%23 |
| Simsurfing Link | https://ds.murata.co.jp/simsurfing/gateway.html?partnumbers=%5B%22LQM2HPN2R2MG0L%22%5D&lcid=en-us&graphop=mainall&focuspartnumberonlist=true&rgear=ytgvkjg |
| Series | LQM2HPN_G0 |
| Product Link | https://www.murata.com/en-us/products/productdetail?partno=LQM2HPN2R2MG0%23 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Dc Resistance | 100 (mΩ) |
| Inductor Construction | Multilayer |
| Dimensions | 2.5 x 2 x 0.9 (mm) |
| Tolerance | ±20 (%) |
| Maximum Dc Current (A) | 1.3 (A) |
| Series | LQM2HP_G0 |
| Depth | 2 (mm) |
| Height | 0.9 (mm) |
| Length | 2.5 (mm) |
| Core Material | Ferrite |
| Inductance | 2.2 μH |
| Maximum Self Resonant Frequency | 40 (MHz) |
| Maximum Operating Temperature | +125 (°C) |
| Minimum Operating Temperature | -55 (°C) |
| Package/Case | 1008 (2520M) |
Inventory for the LQM2HPN2R2MG0L by Murata from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
5,587
|
|
Visit Site | |
|
★ Featured
|
80,000
|
5,130 x $0.06
|
Visit Site | |
| Arrow Europe |
27,000
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Chip One Stop |
14,882
|
|
Visit Site | |
| Farnell UK |
23,764
|
|
Visit Site | |
| Newark |
23
|
|
Visit Site | |
| RS UK |
11,280
|
3,000 x $0.09
|
Visit Site | |
| Rutronik |
303,000
|
|
Visit Site | |
| TME |
1,109
|
|
Visit Site | |
| TTI Europe |
21,000
|
|
Visit Site | |
| Verical |
27,000
|
|
Visit Site | |
| element14 Singapore |
23,759
|
|
Visit Site |
No issues have been reported for the LQM2HPN2R2MG0L
If you experienced any issues with the symbol or footprint, please report it.
