LQP03TN7N5H02D
Inductor with Inductance: 7.5nH Tol. +/-3%, Package: 0201 (0603)
Availability: In Stock
Package Type: 0603
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LQP03TN7N5H02D by Murata and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

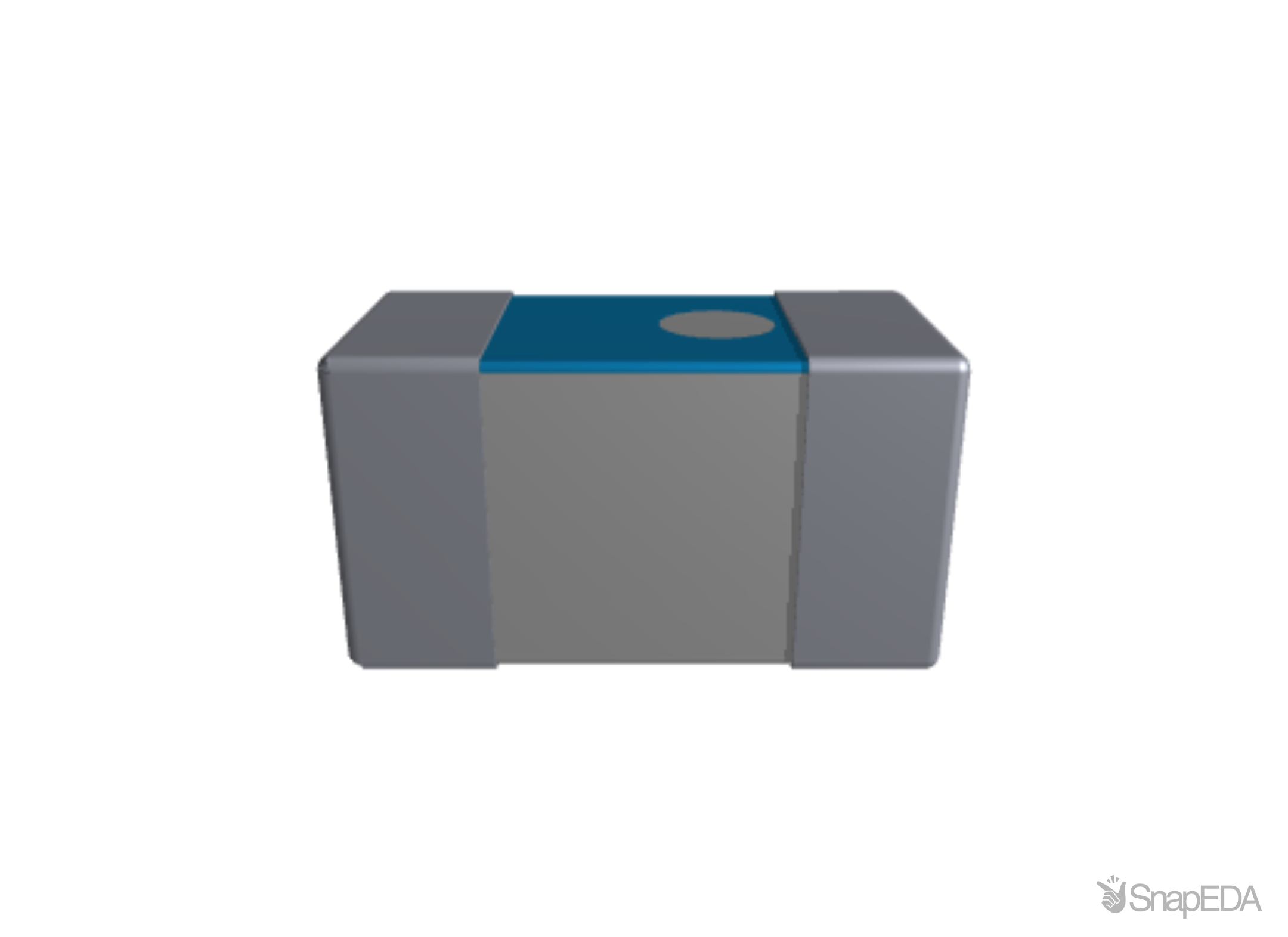

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LQP03TN7N5H02D
| Part Name | LQP03TN7N5H02D |
| Manufacturer | Murata |
| Category | Surface Mount Inductors |
| Sample Link | https://my.murata.com/en/web/samplerequest/cart-requesthistory?pno=LQP03TN7N5H02%23 |
| Simsurfing Link | https://ds.murata.co.jp/simsurfing/gateway.html?partnumbers=%5B%22LQP03TN7N5H02D%22%5D&lcid=en-us&graphop=mainall&focuspartnumberonlist=true&rgear=ytgvkjg |
| Series | LQP03TN_02 |
| Product Link | https://www.murata.com/en-us/products/productdetail?partno=LQP03TN7N5H02%23 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Moulded | Yes |
| Maximum Dc Resistance | 600 (mΩ) |
| Inductor Construction | Film |
| Dimensions | 0.6 x 0.3 x 0.3 (mm) |
| Maximum Dc Current (A) | 300 (mA) |
| Series | LQP03TN_02 |
| Minimum Quality Factor | 14 |
| Depth | 0.3 (mm) |
| Height | 0.3 (mm) |
| Package Case | 0603 (1608M) |
| Length | 0.6 (mm) |
| Core Material | Non-Magnetic Core |
| Inductance | 7.5 nH |
| Maximum Operating Temperature | +125 (°C) |
| Tolerance | ±3 (%) |
| Minimum Operating Temperature | -55 (°C) |
