LQW15AN91NG00D
Inductor with Inductance: 91nH Tol. +/-2%, Package: 0402 (1005)
Availability: In Stock
Package Type: 1005
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LQW15AN91NG00D by Murata and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

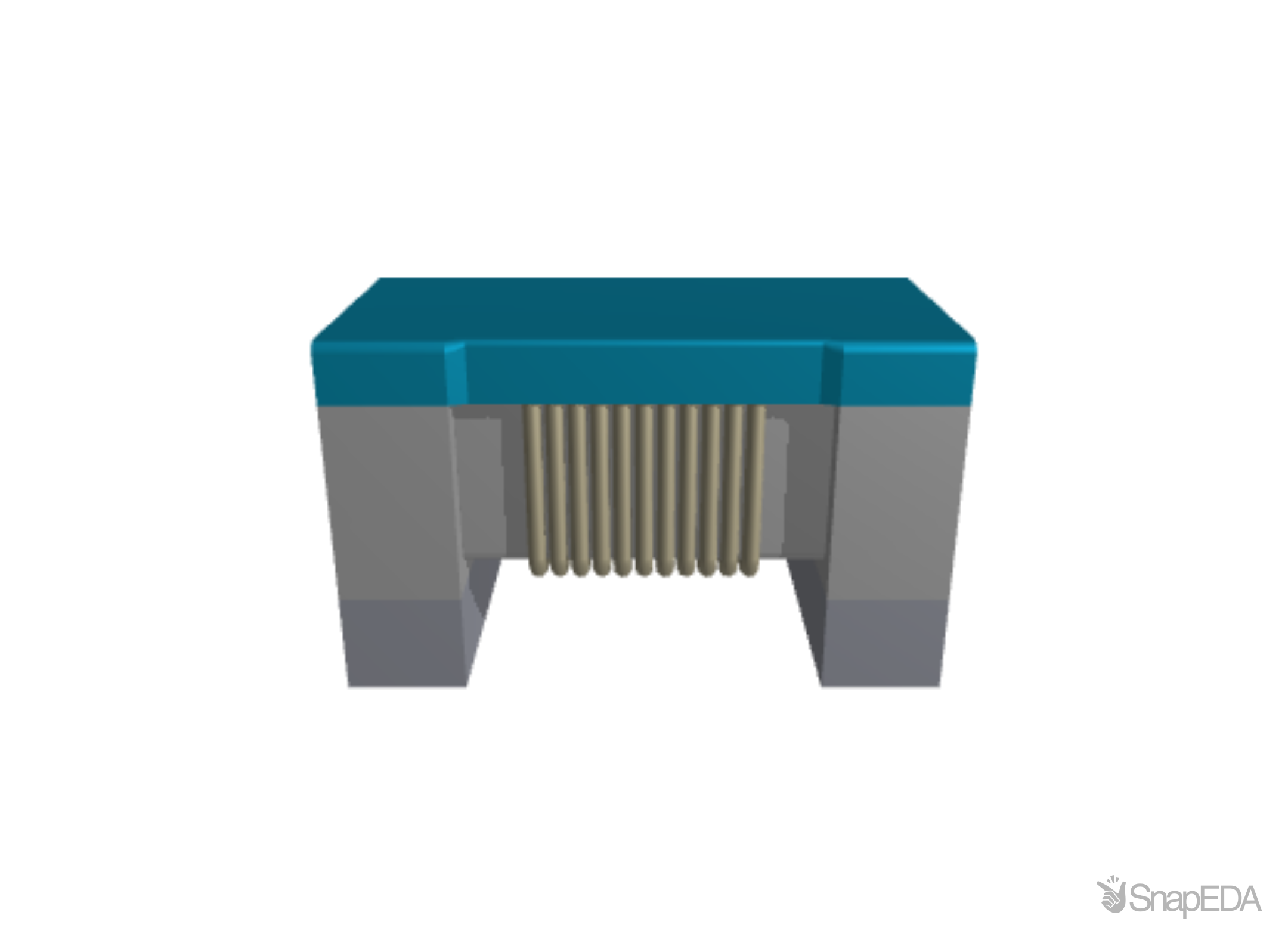

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LQW15AN91NG00D
| Part Name | LQW15AN91NG00D |
| Manufacturer | Murata |
| Category | Surface Mount Inductors |
| Sample Link | https://my.murata.com/en/web/samplerequest/cart-requesthistory?pno=LQW15AN91NG00%23 |
| Simsurfing Link | https://ds.murata.co.jp/simsurfing/gateway.html?partnumbers=%5B%22LQW15AN91NG00D%22%5D&lcid=en-us&graphop=mainall&focuspartnumberonlist=true&rgear=ytgvkjg |
| Series | LQW15AN_00 |
| Product Link | https://www.murata.com/en-us/products/productdetail?partno=LQW15AN91NG00%23 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Dc Resistance | 2.38 (Ω) |
| Inductor Construction | Wire-Wound |
| Dimensions | 1 x 0.5 x 0.5 (mm) |
| Shielded | No |
| Series | LQW15AN_00 |
| Minimum Quality Factor | 20 |
| Depth | 0.5 (mm) |
| Height | 0.5 (mm) |
| Package Case | 0402 (1005M) |
| Length | 1 (mm) |
| Core Material | Ferrite |
| Inductance | 91 nH |
| Maximum Self Resonant Frequency | 2.1 (GHz) |
| Maximum Dc Current (A) | 125 (mA) |
| Maximum Operating Temperature | +125 (°C) |
| Tolerance | ±2 (%) |
| Minimum Operating Temperature | -55 (°C) |
Inventory for the LQW15AN91NG00D by Murata from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
48,320
|
|
Visit Site | |
|
★ Featured
|
122,500
|
17,650 x $0.02
|
Visit Site | |
| Arrow Electronics |
1
|
1 x $0.04
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| CoreStaff |
7,888
|
|
Visit Site | |
| Farnell UK |
|
10,000 x $0.06
|
Visit Site | |
| RS UK |
8,670
|
10 x $0.08
|
Visit Site | |
| Rutronik |
|
|
Visit Site | |
| TME |
|
|
Visit Site | |
| TTI Americas |
10,000
|
10,000 x $0.05
|
Visit Site |
No issues have been reported for the LQW15AN91NG00D
