LQW2BASR15J00L
Inductor with Inductance: 150nH Tol. +/-5%, Package: 0805 (2015)
Availability: Out of Stock
Package Type: 2015
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LQW2BASR15J00L by Murata and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

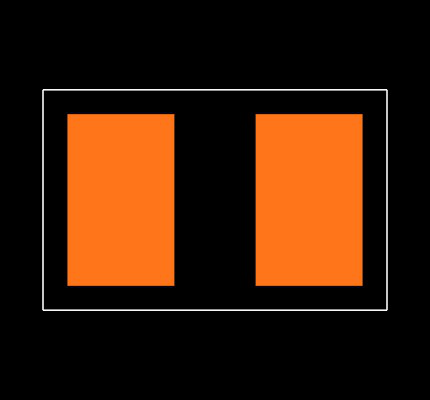

Footprint
No web preview
This Footprint is Available for

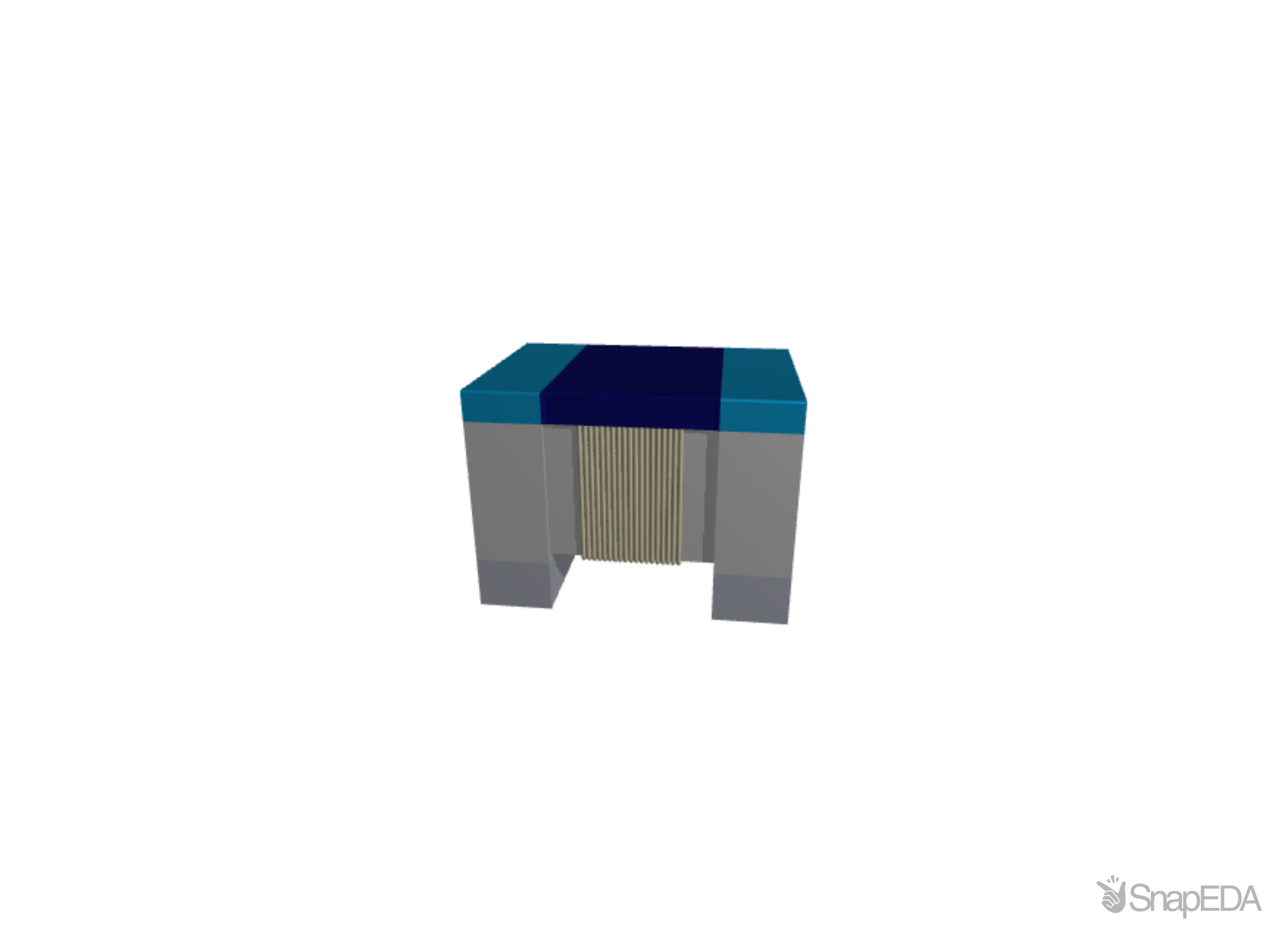

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LQW2BASR15J00L
| Part Name | LQW2BASR15J00L |
| Manufacturer | Murata |
| Category | Inductor |
| Sample Link | https://my.murata.com/en/web/samplerequest/cart-requesthistory?pno=LQW2BASR15J00%23 |
| Simsurfing Link | https://ds.murata.co.jp/simsurfing/gateway.html?partnumbers=%5B%22LQW2BASR15J00L%22%5D&lcid=en-us&graphop=mainall&focuspartnumberonlist=true&rgear=ytgvkjg |
| Series | LQW2BAS_00 |
| Product Link | https://www.murata.com/en-us/products/productdetail?partno=LQW2BASR15J00%23 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Dc Resistance | 560 (mΩ) |
| Inductor Construction | Wire-Wound |
| Dimensions | 2.09 x 1.53 x 1.42 (mm) |
| Tolerance | ±5 (%) |
| Inductance | 0.15 μH |
| Maximum Dc Current (A) | 400 (mA) |
| Series | LQW2BAS_00 |
| Minimum Quality Factor | 50 |
| Length | 2.09 (mm) |
| Height | 1.42 (mm) |
| Package Case | 2015 |
| Depth | 1.53 (mm) |
| Core Material | Non-Magnetic Core |
| Minimum Operating Temperature | -55 (°C) |
| Maximum Operating Temperature | +125 (°C) |
| Moulded | Yes |
