LR0204F110R
SnapVerified
Special Order: LR0204 1% 110R Resistor Type: General Purpose Resistor Element Type: Thin Film Package Size Code: 0204 Power Rating: .25 W Resistance Class: Up to 1kΩ General Purpose Resistor Thin Film 0204 .25 W | Through-Hole Resistor | Part Number: LR0204F110R | Internal Number: 1614981-1 | TE Connectivity
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LR0204F110R by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

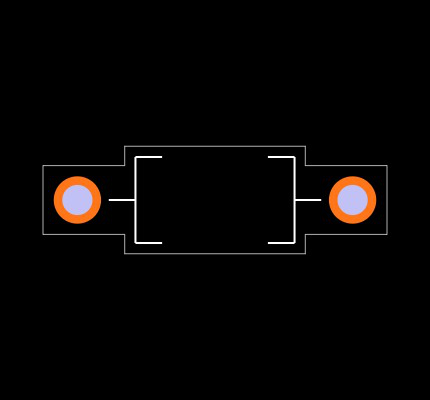

Footprint
No web preview
This Footprint is Available for

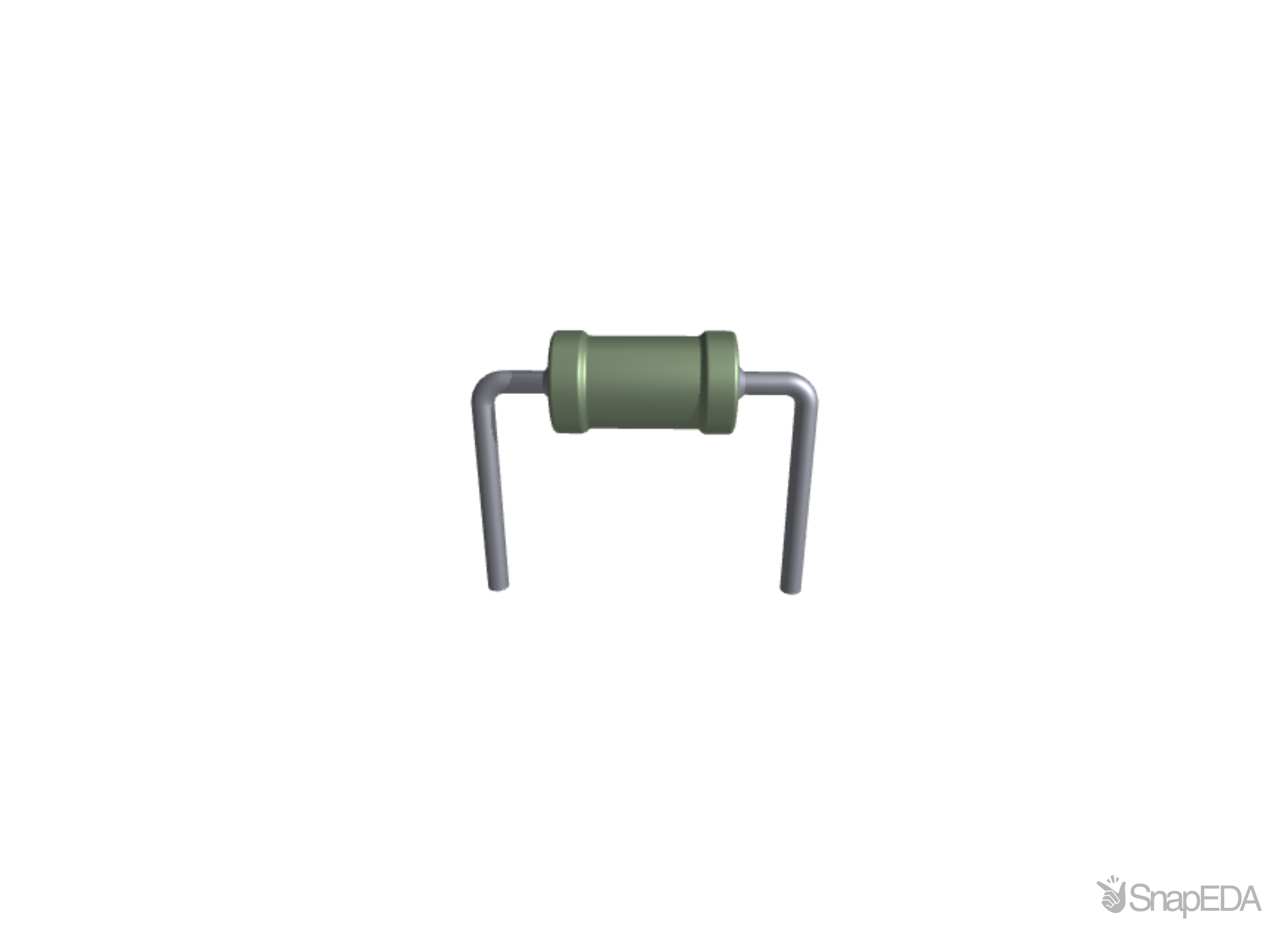

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LR0204F110R
| Part Name | LR0204F110R |
| Manufacturer | TE Connectivity |
| Mount Style | Axial Leaded |
| Dimensions | 3.5 x 2 |
| Operating Temperature Range | -55 – 155 |
| Resistance Class | Up to 1kΩ |
| Packaging Method | Ammo Packed |
| Resistor Type | General Purpose Resistor |
| Package | 0204 |
| Element Type | Thin Film |
| TE Internal Number | 1614981-1 |
| Temperature Coefficient | ±100 |
| Resistance | 110 |
| Number of Resistors | 1 |
| Termination Type | Tinned Copper Leads |
| Number of Terminations | 2 |
| Power Rating | .25 |
| Product Type | Fixed Resistor |
| Tolerance | 1% |
| Size Code | 0204 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
