LT1007CN8#PBF
LT1007 - Low Noise, High Speed Precision Operational Amplifiers
Availability: In Stock
Package Type: PDIP-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LT1007CN8#PBF by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates
Symbol
No web preview
This Symbol is Available for

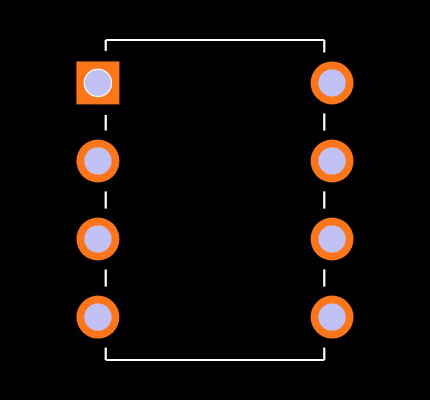

Footprint
No web preview
This Footprint is Available for

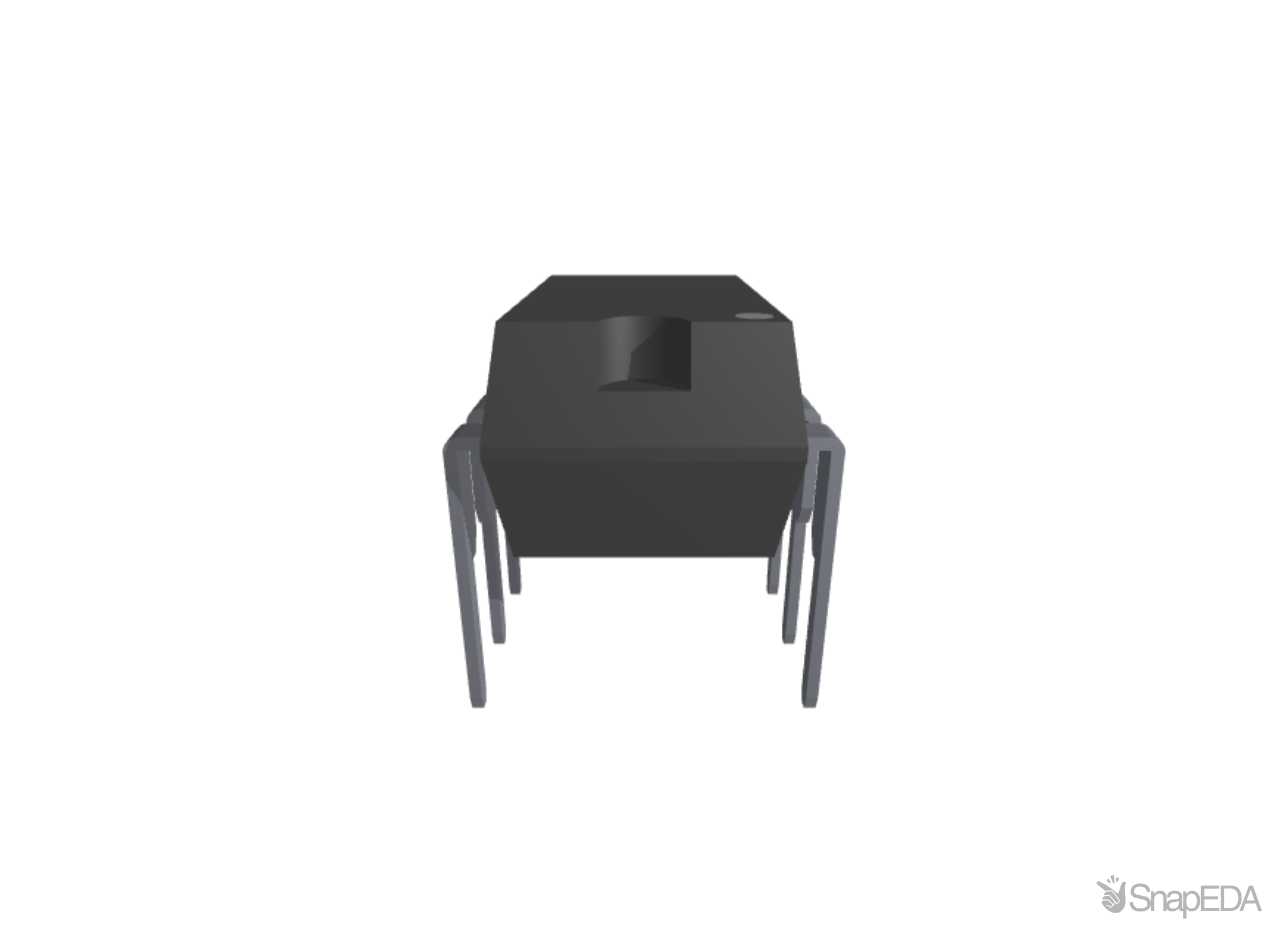

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LT1007CN8#PBF
| Part Name | LT1007CN8#PBF |
| Manufacturer | Analog Devices |
| Product Category | High Voltage Op Amps ≥12V |
| Package | PLASTIC DIP |
| MOQ | 1 |
| RoHS value | Yes |
| Part Launch Date | 8/29/1995 4:00:00 AM |
| Pins | 8 |
| Product Link | https://www.analog.com/en/products/lt1007.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Temperature Range | 0 to 70C |
| Product Lifecycle | Production |
| RoHS | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 10.16 x 6.47 x 3.3 (mm) |
| Typical Slew Rate | 2.5 (V/µs) |
| Typical Gain Bandwidth Product | 8 (MHz) |
| Width | 6.47 (mm) |
| Input Offset Current (A) | 70 (nA) |
| Power Supply Type | Dual |
| Rail To Rail | No |
| Package Type | PDIP |
| Typical Voltage Gain (V) | 145 dB |
| Maximum Operating Temperature | +70 °C |
| Length | 10.16 (mm) |
| Pin Count | 8 |
| Typical Dual Supply Voltage (V) | ±12.5 (V) |
| Typical Input Voltage Noise Density (V) | 4.5 (nV/√Hz) |
| Offset Voltage (V) | 110 (µV) |
| Mounting Type | Through Hole |
| Input Voltage Range (V) | ±11 → ±15 V |
| Number Of Channels Per Chip | 1 |
| Height | 3.3 (mm) |
| Minimum Operating Temperature | 0 °C |
| Amplifier Type | Low Noise, Precision |
| Maximum Input Voltage (V) | ±15 V |
| Minimum Input Voltage (V) | ±10.5 V |
Inventory for the LT1007CN8#PBF by Analog Devices from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
263
|
|
Visit Site | |
| Analog Devices |
5,703
|
|
Visit Site | |
| Farnell UK |
125
|
|
Visit Site | |
| Newark |
39
|
|
Visit Site | |
| element14 Singapore |
125
|
|
Visit Site |
No issues have been reported for the LT1007CN8#PBF
