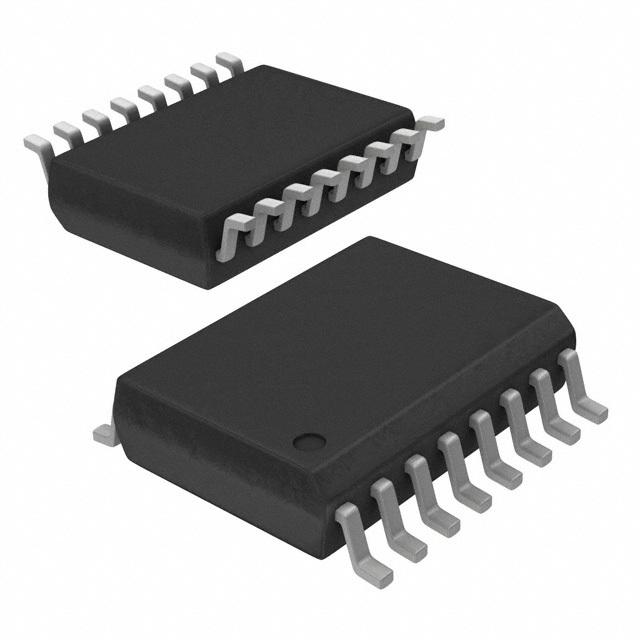

LT1125CSW#TRPBF
The LT1124 dual and LT1125 quad are high performance op amps that offer higher gain, slew rate and bandwidth than the industry standard OP-27 and competing OP‑270/ OP-470 op amps. In addition, the LT1124/LT1125 have lower IB and IOS than the OP-27; lower VOS and noise than the OP-270/OP-470. In the design, processing and testing of the device, particular attention has been paid to the optimization of the entire distribution of several key parameters. Slew rate, gain bandwidth and 1kHz noise are 100% tested for each individual amplifier. Consequently, the specifications of even the lowest cost grades (the LT1124C and the LT1125C) have been spectacularly improved compared to equivalent grades of competing amplifiers. Power consumption of the LT1124 is one-half of two OP-27s. Low power and high performance in an 8-pin SO package make the LT1124 a first choice for surface mounted systems and where board space is restricted. For a decompensated version of these devices, with three times higher slew rate and bandwidth, please see the LT1126/LT1127 data sheet. Applications Two and Three Op Amp Instrumentation Amplifiers Low Noise Signal Processing Active Filters Microvolt Accuracy Threshold Detection Strain Gauge Amplifiers Direct Coupled Audio Gain Stages Tape Head Preamplifiers Infrared Detectors
Availability: Out of Stock
Package Type: SO-16
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LT1125CSW#TRPBF by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LT1125CSW#TRPBF
| Part Name | LT1125CSW#TRPBF |
| Manufacturer | Analog Devices |
| Product Category | Precision Op Amps (Vos ≤1mV & TCVos ≤2uV/C) |
| Package | SOIC 300 MIL |
| MOQ | 0 |
| RoHS value | Yes |
| Part Launch Date | 1/1/1983 5:00:00 AM |
| Temperature Range | 0 to 70C |
| Product Link | https://www.analog.com/en/products/lt1125.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Pins | 16 |
| Product Lifecycle | Production |
| RoHS | 0 to 70C |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
