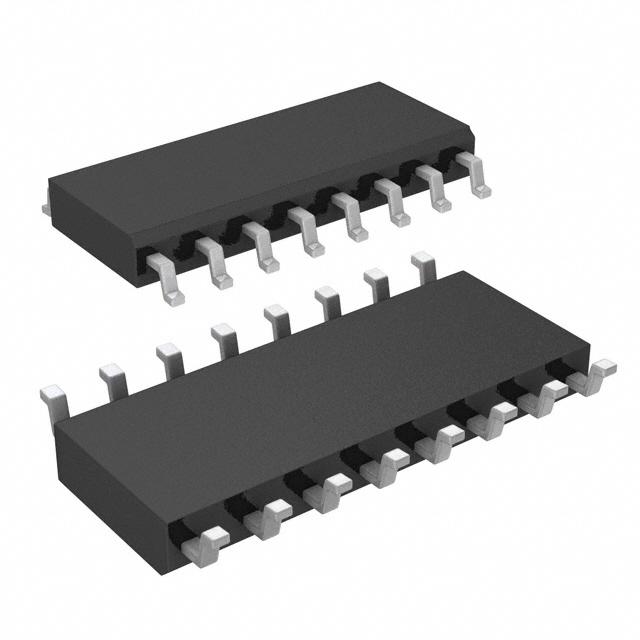

LT1182CS#PBF
- Converter, CCFL, LCD Voltage Regulator IC 1 Output 16-SOIC
Availability: Out of Stock
Package Type: SO-16
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LT1182CS#PBF by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LT1182CS#PBF
| Part Name | LT1182CS#PBF |
| Manufacturer | Analog Devices |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Display Type | LCD |
| Mounting Type | Surface Mount |
| Height | 1.752 (mm) |
| Width | 3.988 (mm) |
| Length | 10.01 (mm) |
| Package Type | SOIC |
| Supply Voltage (V) | 4.5 → 6 V |
| Minimum Operating Temperature | 0 (°C) |
| Number Of Pins | 16 |
| Maximum Operating Temperature | +100 (°C) |
No issues have been reported for the LT1182CS#PBF
