LT1185CQ#TRPBF
Linear Voltage Regulator IC Positive or Negative Adjustable 1 Output 3A DDPAK-5
Availability: Out of Stock
Package Type: TO-263
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LT1185CQ#TRPBF by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

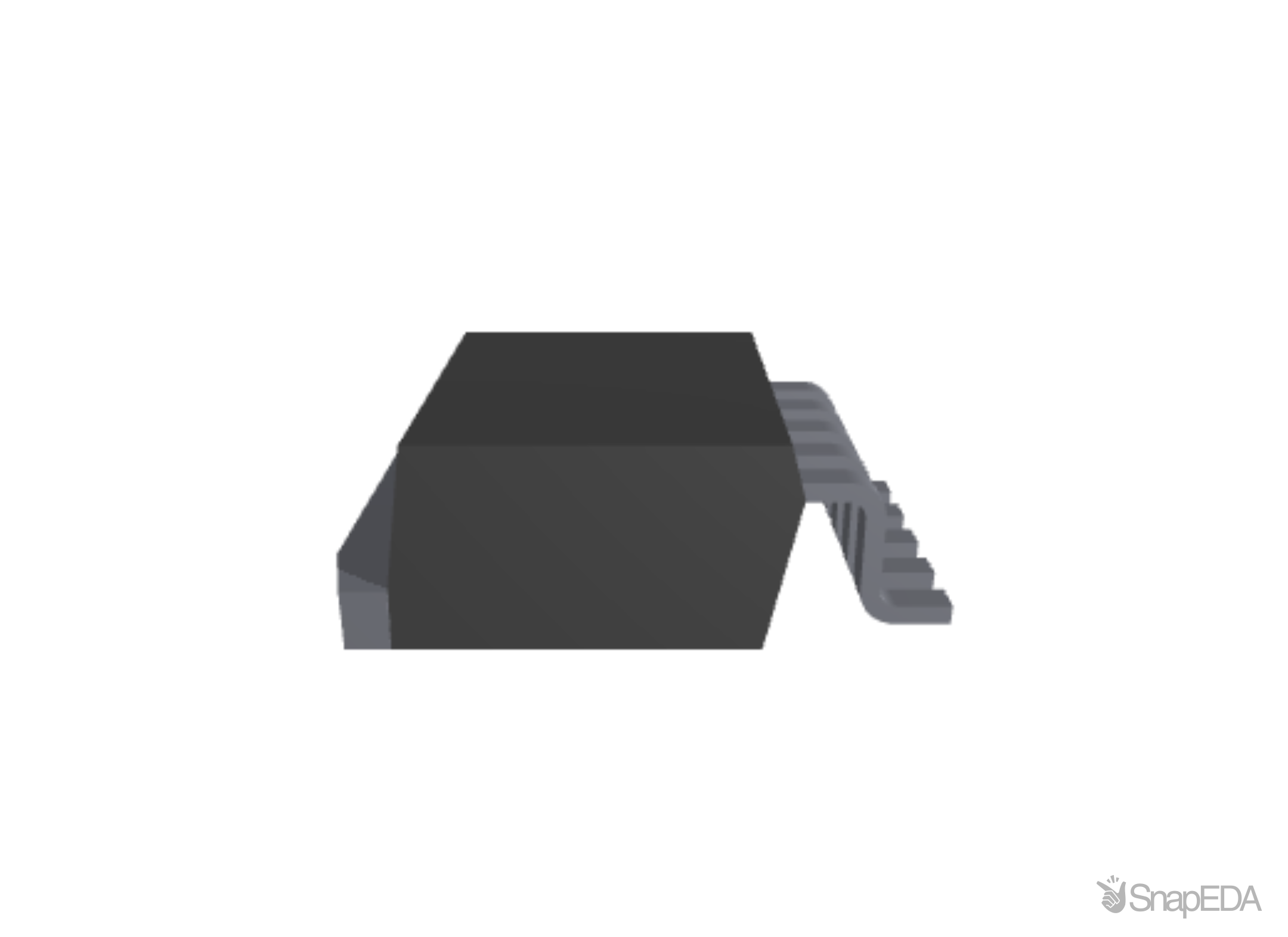

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LT1185CQ#TRPBF
| Part Name | LT1185CQ#TRPBF |
| Manufacturer | Analog Devices |
| Product Category | Negative Linear Regulators (LDO) |
| Package | SRF MT PWR MOLY TAB BENT L |
| MOQ | 1 |
| RoHS value | Yes |
| Part Launch Date | 10/21/1992 4:00:00 AM |
| Pins | 5 |
| Product Link | https://www.analog.com/en/products/lt1185.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Temperature Range | 0 to 70C |
| Product Lifecycle | Production |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Polarity | Negative |
| Dimensions | 10.541 x 10.922 x 4.572 (mm) |
| Regulator Type | Low Dropout Voltage |
| Width | 10.922 (mm) |
| Reference Voltage (V) | 2.37 (V) |
| Accuracy | ±1 (%) |
| Number Of Outputs | 1 |
| Load Regulation | 0.3 % |
| Output Type | Adjustable |
| Package Type | D2PAK |
| Maximum Operating Temperature | +70 °C |
| Quiescent Current (A) | 2.5 (mA) |
| Line Regulation | 0.01 %/V |
| Length | 10.54 (mm) |
| Pin Count | 5 |
| Mounting Type | Surface Mount |
| Height | 4.572 (mm) |
| Output Voltage (V) | 2.5 → 25 V |
| Minimum Operating Temperature | 0 °C |
| Maximum Output Current (A) | 3 (A) |
| Maximum Input Voltage (V) | 35 V |
| Minimum Input Voltage (V) | 4 V |
