LT1216CS#TRPBF
The LT1215 is a dual, single supply precision op amp with a 23MHz gain-bandwidth product and a 50V/µs slew rate. The LT1216 is a quad version of the same amplifier. The DC precision of the LT1215/LT1216 eliminates trims in most systems while providing high frequency performance not usually found in single supply amplifiers. The LT1215/LT1216 will operate on any supply greater than 2.5V and less than 36V total. These amplifiers are specified on single 3.3V, single 5V and ±15V supplies, and only require 5mA of quiescent supply current per amplifier. The inputs can be driven beyond the supplies without damage or phase reversal of the output. The minimum output drive is 30mA, ideal for driving low impedance loads. Note: For applications requiring less slew rate, see the LT1211/LT1212 and LT1213/LT1214 data sheets. Applications 2.5V Full-Scale 12-Bit Systems: VOS < 0.75 LSB 10V Full-Scale 16-Bit Systems: VOS < 3 LSB Active Filters Photo Diode Amplifiers DAC Current to Voltage Amplifiers Battery-Powered Systems
Availability: Out of Stock
Package Type: SO-16
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LT1216CS#TRPBF by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

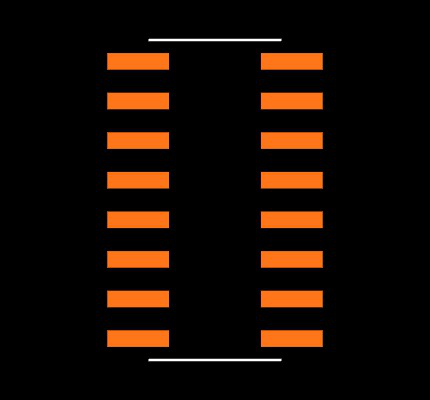

Footprint
No web preview
This Footprint is Available for

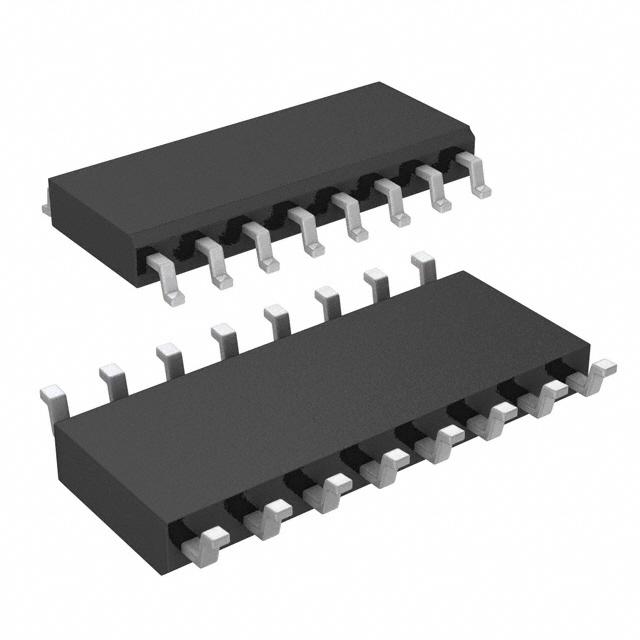

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LT1216CS#TRPBF
| Part Name | LT1216CS#TRPBF |
| Manufacturer | Analog Devices |
| Product Category | Precision Op Amps (Vos ≤1mV & TCVos ≤2uV/C) |
| Package | SOIC 150 MIL |
| MOQ | 0 |
| RoHS value | Yes |
| Part Launch Date | 3/13/1998 5:00:00 AM |
| Pins | 16 |
| Product Link | https://www.analog.com/en/products/lt1216.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Temperature Range | 0 to 70C |
| Product Lifecycle | Production |
| RoHS | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the LT1216CS#TRPBF by Analog Devices from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
N/A | Visit Site | |
| Mouser |
|
N/A | Visit Site |
No issues have been reported for the LT1216CS#TRPBF
