LT1494CS8#TRPBF

The LT1494/LT1495/LT1496 are the lowest power (IS ≤­ 1.5µA) op amps with precision specifications. The extremely low supply current is combined with excellent amplifier specifications: input offset voltage is 375µV maximum with a typical drift of only 0.4µV/°C, input offset current is 100pA maximum. A minimum open-loop gain (AVOL) of 100V/mV ensures that gain errors are small. The device characteristics change little over the supply range of 2.2V to ±15V. Supply rejection is 90dB and the common mode rejection ratio is 90dB. Operation is specified for 3V, 5V and ±15V supplies. Reverse battery protection (–18V min) and inputs that operate above the positive supply make the LT1494/LT1495/LT1496 easy to use in harsh environments. The low bias currents and offset current of the amplifier permit the use of megohm level source resistors without introducing significant errors. Voltage noise at 4µVP-P is remarkably low considering the low supply current. The LT1494 is available in the 8-Pin MSOP, PDIP and SO packages.The LT1495 is available in plastic 8-Pin PDIP and SO packages with the standard dual op amp pinout. The LT1496 is available in 14-Pin SO and PDIP packages. Applications Battery- or Solar-Powered Systems Portable Instrumentation Remote Sensor Amplifier Micropower Filter

Availability: Out of Stock

Package Type:  SOIC-8

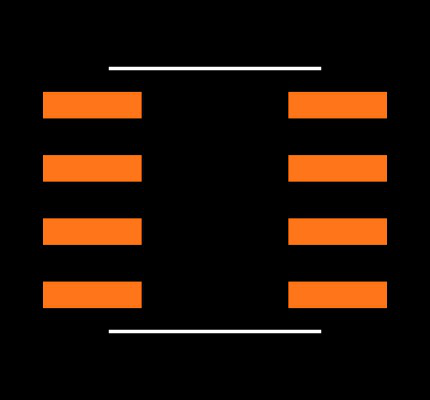

CAD Models: Symbol, Footprint, 3D Model
