LT1521CS8-5#PBF
V REG LDO +5.0V, SMD, 1521, SOIC8; Primary Input Voltage:6V; Output Voltage Fixed:5V; Dropout Voltage Vdo:500mV; No. of Pins:8; Output Current:300mA; Voltage Regulator Case Style:SOIC; Operating Temperature Range:0°C to +125°C; SVHC:No SVHC (19-Dec-2011); Base Number:1521; IC Generic Number:1521; Input Voltage Max:20V; Input Voltage Min:5.5V; Logic Function Number:1521; No. of Outputs:1; Operating Temperature Max:125°C; Operating Temperature Min:0°C; Output Current Max:0.3A; Output Voltage:5V; Output Voltage Max:5V; Package / Case:SOIC; Supply Voltage Max:20V; Supply Voltage Min:6V; Termination Type:SMD; Voltage:5V; Voltage Drop @ Rated Current:0.5V; Voltage Regulator Type:Positive Fixed LDO
Availability: Out of Stock
Package Type: SO-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LT1521CS8-5#PBF by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

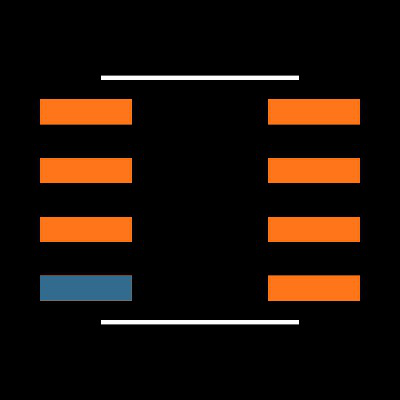

Footprint
No web preview
This Footprint is Available for

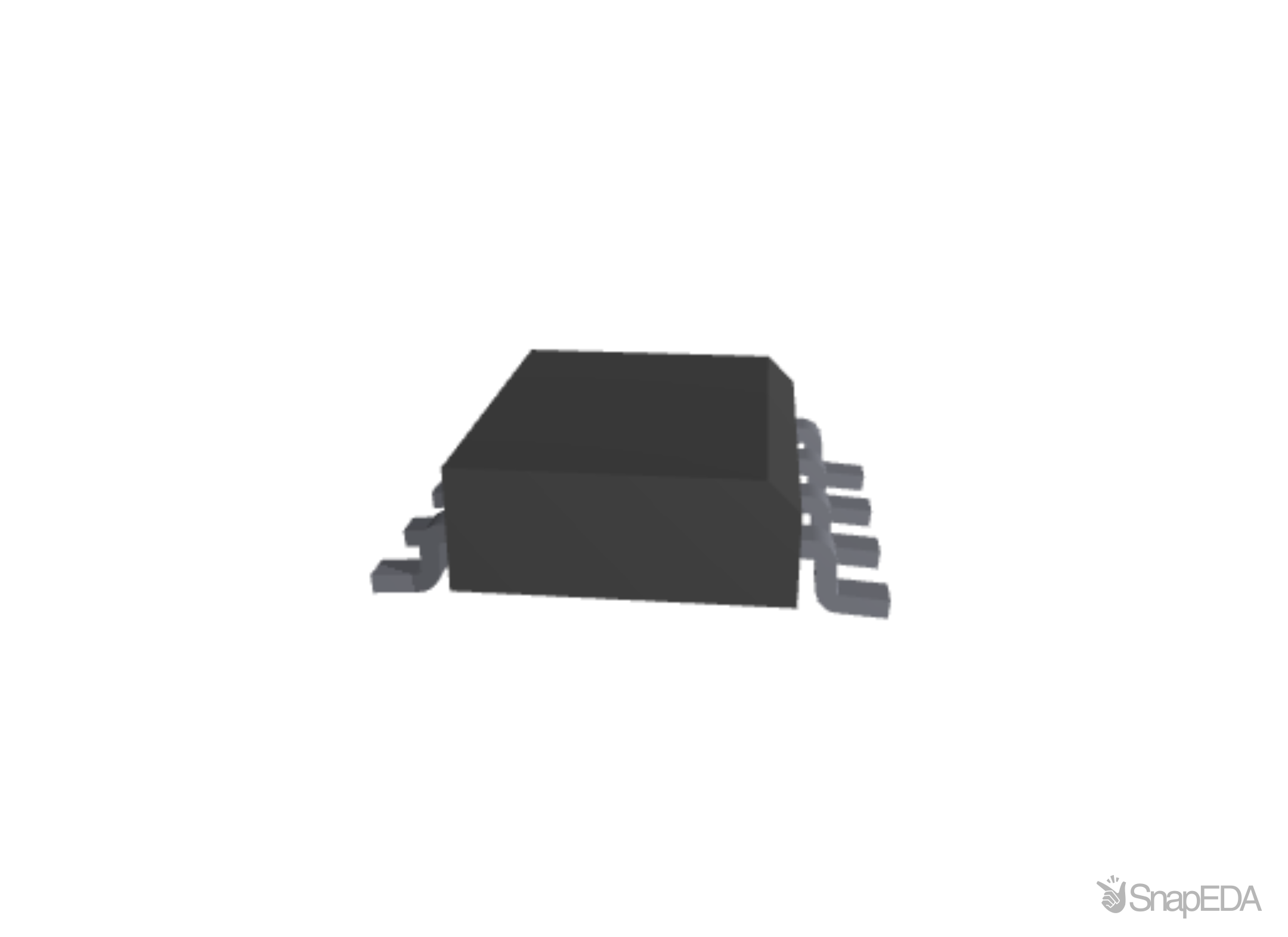

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LT1521CS8-5#PBF
| Part Name | LT1521CS8-5#PBF |
| Manufacturer | Analog Devices |
| Product Category | Positive Linear Regulators (LDO) |
| Package | SOIC 150 MIL |
| MOQ | 1 |
| RoHS value | Yes |
| Part Launch Date | 8/9/1995 4:00:00 AM |
| Temperature Range | 0 to 125C |
| Product Link | https://www.analog.com/en/products/lt1521.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Pins | 8 |
| Product Lifecycle | Production |
| RoHS | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Polarity | Positive |
| Number Of Outputs | 1 |
| Load Regulation | -45 V |
| Dimensions | 5.004 x 3.988 x 1.498 (mm) |
| Mounting Type | Surface Mount |
| Maximum Output Current (A) | 300 (mA) |
| Line Regulation | 20 mV |
| Regulator Type | Low Dropout Voltage |
| Output Type | Fixed |
| Height | 1.498 (mm) |
| Width | 3.988 (mm) |
| Length | 5 (mm) |
| Output Voltage (V) | 5 V |
| Package Type | SOIC |
| Minimum Operating Temperature | 0 °C |
| Minimum Input Voltage (V) | -20 V |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 8 |
| Maximum Input Voltage (V) | 20 V |
| Quiescent Current (A) | 12 (µA) |
