LT1638CS8#TRPBF
LT1638 - 1.2MHz, 0.4V/μs Over-The-Top Micropower Rail-to-Rail Input and Output Op Amps
Availability: In Stock
Package Type: SO-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LT1638CS8#TRPBF by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates

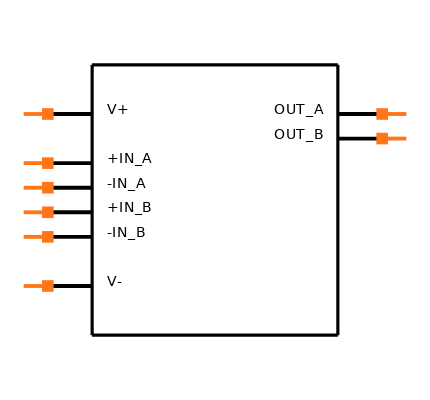

Symbol
No web preview
This Symbol is Available for

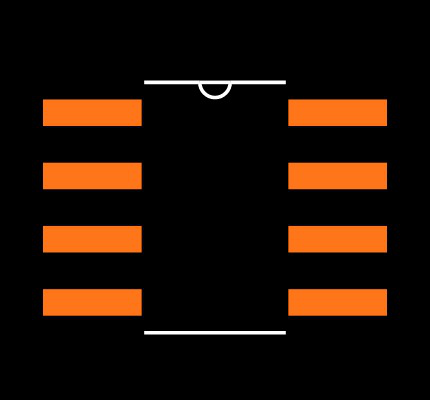

Footprint
No web preview
This Footprint is Available for

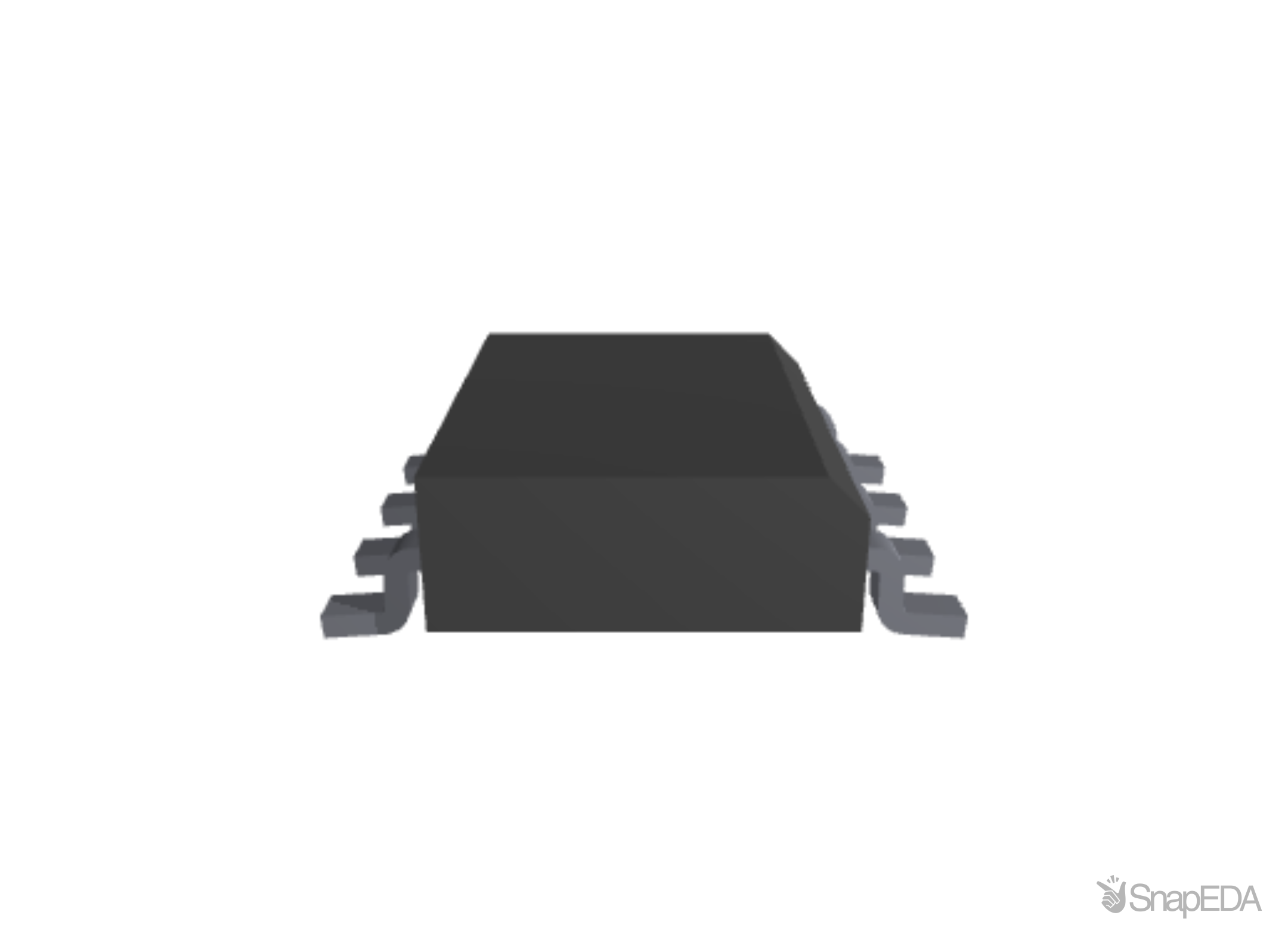

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LT1638CS8#TRPBF
| Part Name | LT1638CS8#TRPBF |
| Manufacturer | Analog Devices |
| Product Category | Low Power Op Amps (≤ 1mA/amp) |
| Package | SOIC 150 MIL |
| MOQ | 1 |
| RoHS value | Yes |
| Part Launch Date | 1/19/2001 5:00:00 AM |
| Temperature Range | 0 to 70C |
| Product Link | https://www.analog.com/en/products/lt1638.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Pins | 8 |
| Product Lifecycle | Production |
| RoHS | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Typical Voltage Gain (V) | 123.5 dB |
| Typical Dual Supply Voltage (V) | ±12 V, ±15 V, ±18 V, ±3 V, ±5 V, ±9 V |
| Typical Input Voltage Noise Density (V) | 20 (nV/√Hz) |
| Dimensions | 5 x 3.99 x 1.48 (mm) |
| Mounting Type | Surface Mount |
| Typical Slew Rate | 0.38 (V/µs) |
| Power Supply Type | Dual, Single |
| Number Of Channels Per Chip | 2 |
| Rail To Rail | Rail to Rail Input/Output |
| Typical Gain Bandwidth Product | 1.1 (MHz) |
| Typical Single Supply Voltage (V) | 3 → 28 V |
| Width | 3.99 (mm) |
| Length | 5 (mm) |
| Package Type | SOIC |
| Minimum Operating Temperature | 0 °C |
| Amplifier Type | Low Power, Precision |
| Height | 1.48 (mm) |
| Maximum Operating Temperature | +70 °C |
| Pin Count | 8 |
