LT1716IS5#TRMPBF
COMPARATOR, 44V, UP, SOT23-5; No. of Comparators:1; Comparator Type:Precision; Response Time:3µs; Output Type:Pull-Up; Current, Supply:40µA; Voltage, Supply Min:2.7V; Voltage, Supply Max:44V; Termination Type:SMD; Case Style:SOT-23; No. of Pins:5; Operating Temperature Range:-40°C to +85°C; Base Number:1716
Availability: Out of Stock
Package Type: SOT-5
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LT1716IS5#TRMPBF by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

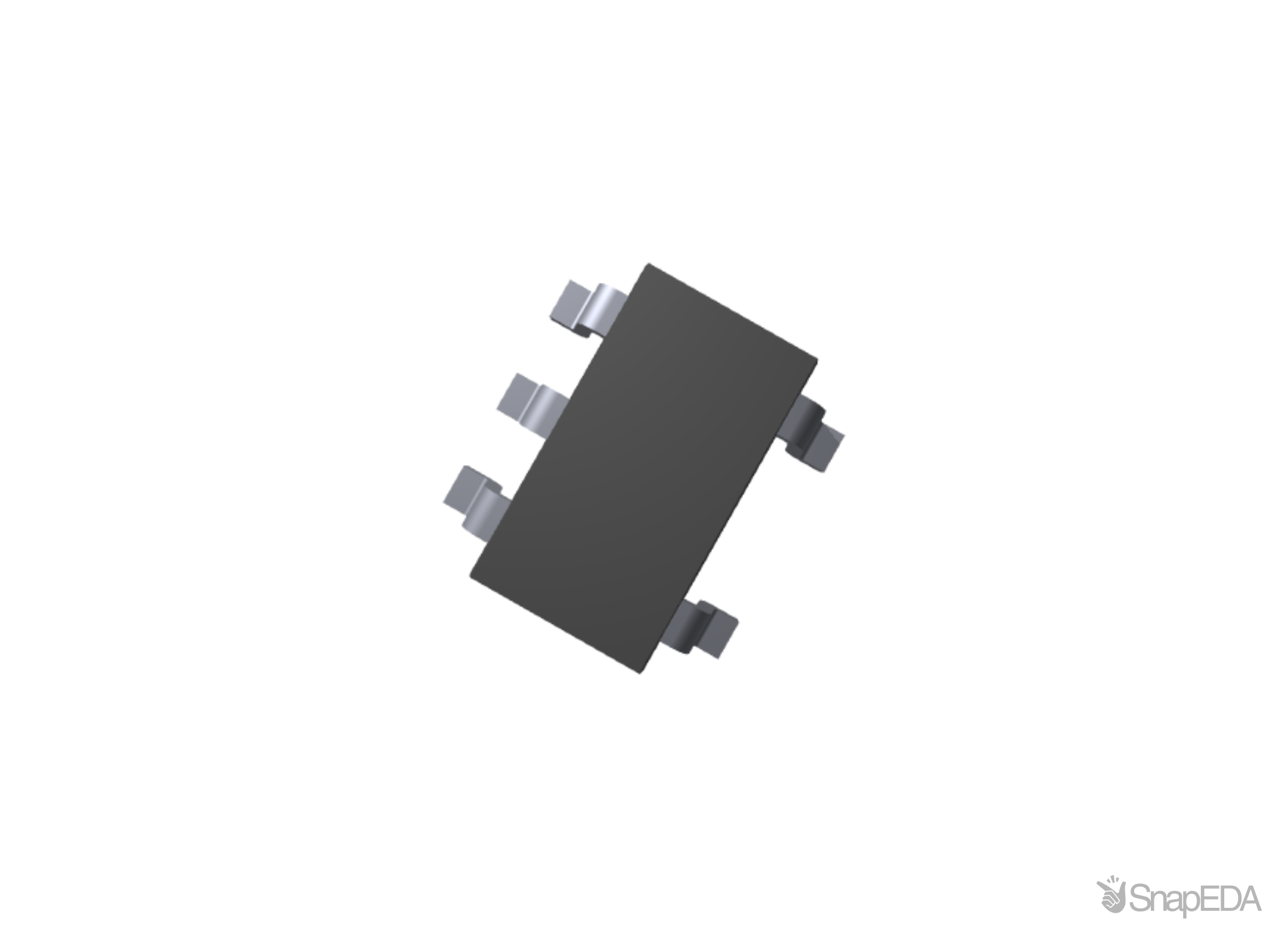

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LT1716IS5#TRMPBF
| Part Name | LT1716IS5#TRMPBF |
| Manufacturer | Analog Devices |
| Product Category | Low Power Comparators |
| Package | TSOT-23 5, 6, 8 lead |
| MOQ | 1 |
| RoHS value | Yes |
| Part Launch Date | 8/9/2002 4:00:00 AM |
| Temperature Range | -40 to 85C |
| Product Link | https://www.analog.com/en/products/lt1716.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Pins | 5 |
| Product Lifecycle | Production |
| RoHS | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Typical Dual Supply Voltage (V) | ±22 (V) |
| Comparator Type | Low Power |
| Dimensions | 2.9 x 1.75 x 0.9 (mm) |
| Mounting Type | Surface Mount |
| Typical Psrr | 110 (dB) |
| Power Supply Type | Dual, Single |
| Typical Cmrr | 110 (dB) |
| Length | 2.9 (mm) |
| Output Type | Push-Pull |
| Height | 0.9 (mm) |
| Width | 1.75 (mm) |
| Typical Single Supply Voltage (V) | 2.7 → 44 V |
| Package Type | TSOT-23 |
| Number Of Channels Per Chip | 1 |
| Minimum Operating Temperature | -40 °C |
| Typical Voltage Gain (V) | 500 V/mV |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 5 |
