LT1764AEQ-1.8

Name: LT1764AEQ-1.8
Brand: Analog Devices

LT1764A - 3A, Fast Transient Response, Low Noise, LDO Regulators

Availability: Out of Stock

Package Type: TO-263

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the LT1764AEQ-1.8 by Analog Devices and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

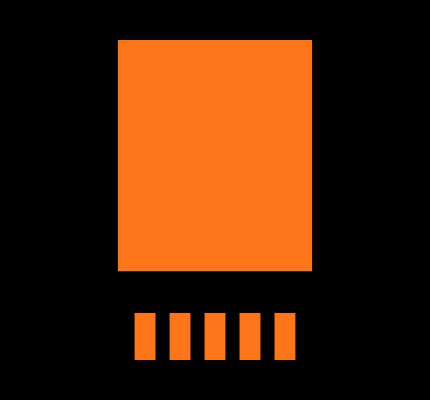

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the LT1764AEQ-1.8

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the LT1764AEQ-1.8

Part Name	LT1764AEQ-1.8
Manufacturer	Analog Devices
RoHS	No
Life Cycle Status	End of Life
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF
Polarity	Positive
Number Of Outputs	1
Load Regulation	8 mV
Dimensions	10.54 x 9.4 x 4.57 (mm)
Mounting Type	Surface Mount
Quiescent Current (A)	1 (mA)
Maximum Operating Temperature	+125 °C
Regulator Type	Low Noise LDO
Output Type	Fixed
Height	4.57 (mm)
Width	9.4 (mm)
Length	10.54 (mm)
Output Voltage (V)	1.8 V
Package Type	D2PAK
Minimum Operating Temperature	-40 °C
Minimum Input Voltage (V)	1.7 V
Maximum Output Current (A)	3 (A)
Pin Count	6
Maximum Input Voltage (V)	20 V
Line Regulation	10 mV

Inventory for the LT1764AEQ-1.8 by Analog Devices from major distributors.

Supplier	Quantity	Price	Purchase
Mouser		N/A		Visit Site
