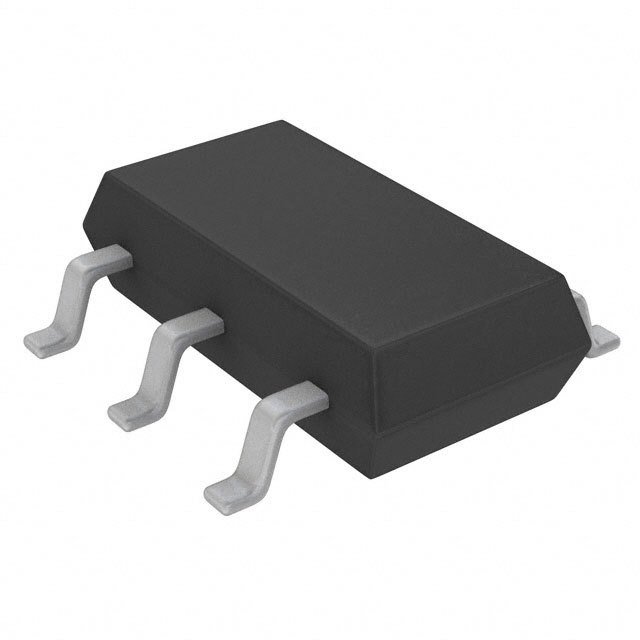

LT1784IS6#TRMPBF
The LT1784 is a 2.5MHz op amp available in the small SOT-23 package that operates on all single and split supplies with a total voltage of 2.5V to 18V. The amplifier draws less than 750µA of quiescent current and has reverse battery protection, drawing negligible current for reverse supply voltages up to 18V. The input range of the LT1784 includes ground, and a unique feature of this device is its Over-The-Top® operation capabilitity with either or both of its inputs above the positive rail. The inputs handle 18V both differential and common mode, independent of supply voltage. The input stage incorporates phase reversal protection to prevent false outputs from occurring even when the inputs are 9V below the negative supply. The LT1784 can drive loads up to 15mA and still maintain rail-to-rail capability. A shutdown feature on the 6-lead version can disable the part, making the output high impedance and reducing quiescent current to 5µA. The LT1784 op amp is available in the 5- and 6-lead SOT-23 packages. For applications requiring lower power, refer to the LT1782 and LT1783 data sheets. Applications Portable Instrumentation Battery-Powered Systems Sensor Conditioning Supply Current Sensing MUX Amplifiers 4mA to 20mA Transmitters
Availability: Out of Stock
Package Type: SOT-23
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LT1784IS6#TRMPBF by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LT1784IS6#TRMPBF
| Part Name | LT1784IS6#TRMPBF |
| Manufacturer | Analog Devices |
| Product Category | High Voltage Op Amps ≥12V |
| Package | TSOT-23 5, 6, 8 lead |
| MOQ | 0 |
| RoHS value | Yes |
| Part Launch Date | 10/26/2000 4:00:00 AM |
| Temperature Range | -40 to 85C |
| Product Link | https://www.analog.com/en/products/lt1784.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Pins | 6 |
| Product Lifecycle | Production |
| RoHS | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
