LTC1100CN8#PBF
IC, AMP INSTRUMENTATION, 1100, DIP8; No. of Amplifiers:1; Input Offset Voltage:10µV; Gain dB Max:100dB; Bandwidth:180kHz; Amplifier Output:Single Ended; CMRR:110dB; Slew Rate:3V/µs; Supply Voltage Range:± 2.5V to ± 8V; Supply Current:2.4mA; Amplifier Case Style:DIP; No. of Pins:8; Operating Temperature Range:-40°C to +85°C; SVHC:No SVHC (19-Dec-2011); Amplifier Type:Instrumentation; Base Number:1100; Gain Bandwidth:18kHz; IC Generic Number:1100; Input Offset Drift Max:0.1µV/°C; Input Offset Voltage Max:0.01mV; Logic Function Number:1100; Operating Temperature Max:85°C; Operating Temperature Min:-40°C; Operational Amplifier Features:Precision; Output Type:Single Ended; Package / Case:DIP; Programmable Gain Max:100; Supply Voltage + Nom:5V; Supply Voltage Max:18V; Supply Voltage Min:4V; Termination Type:Through Hole
Availability: Out of Stock
Package Type: PDIP-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LTC1100CN8#PBF by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

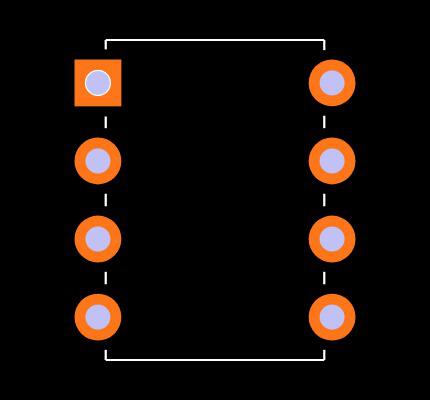

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
Verification | Issues | Specs | Pricing |
Specifications for the LTC1100CN8#PBF
Part Name | LTC1100CN8#PBF |
Manufacturer | Analog Devices |
Product Category | Instrumentation Amplifiers |
Package | PLASTIC DIP |
MOQ | 1 |
RoHS value | Yes |
Part Launch Date | 1/1/1990 5:00:00 AM |
Pins | 8 |
Product Link | https://www.analog.com/en/products/ltc1100.html?ADICID=SYND_WW_P682800_PF-snapeda |
Temperature Range | 0 to 70C |
Product Lifecycle | Production |
RoHS | 0 to 70C |
Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
Datasheet | See Datasheet PDF |
No issues have been reported for the LTC1100CN8#PBF
If you experienced any issues with the symbol or footprint, please report it.
