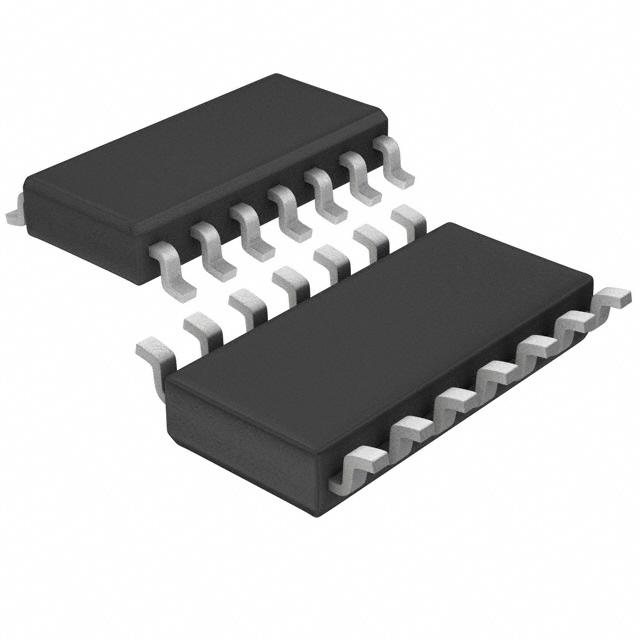

LTC1265CS-5#PBF
DC/DC CONVERTER, 5V, SMD, SOIC14; Voltage Regulator Type:Step Down; Voltage, Input Max:13V; Voltage, Output Max:5V; Max Output Current:1.6A; Current, Switch Output Max Isw:1.6A; Frequency:700kHz; Voltage, Supply Min:-0.3V; Voltage, Supply Max:13V; Termination Type:SMD; Case Style:SOIC; No. of Pins:14; Operating Temperature Range:0°C to +70°C; Temp, Op. Max:70°C; Temp, Op. Min:0°C; Base Number:1265; Temperature Range, IC:Commercial; Voltage, Output:5V; Voltage, Vcc:13V
Availability: In Stock
Package Type: SO-14
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LTC1265CS-5#PBF by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LTC1265CS-5#PBF
| Part Name | LTC1265CS-5#PBF |
| Manufacturer | Analog Devices |
| Product Category | Internal Power Switch Buck Regulators |
| Package | SOIC 150 MIL |
| MOQ | 0 |
| RoHS value | Yes |
| Part Launch Date | 4/14/1995 4:00:00 AM |
| Pins | 14 |
| Product Link | https://www.analog.com/en/products/ltc1265.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Temperature Range | 0 to 70C |
| Product Lifecycle | Production |
| RoHS | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
