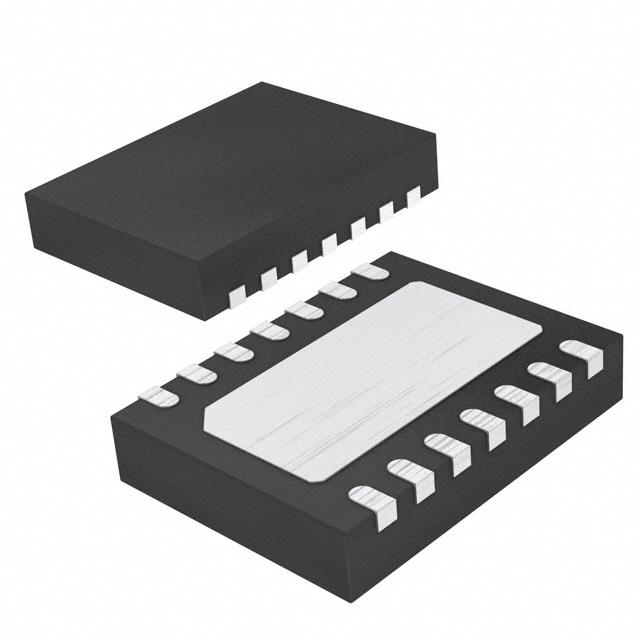

LTC2486IDE#PBF
16-Bit 2-/4-Channel ∆Σ ADC with PGA and Easy Drive Input Current Cancellation
Availability: In Stock
Package Type: DFN-14
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LTC2486IDE#PBF by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

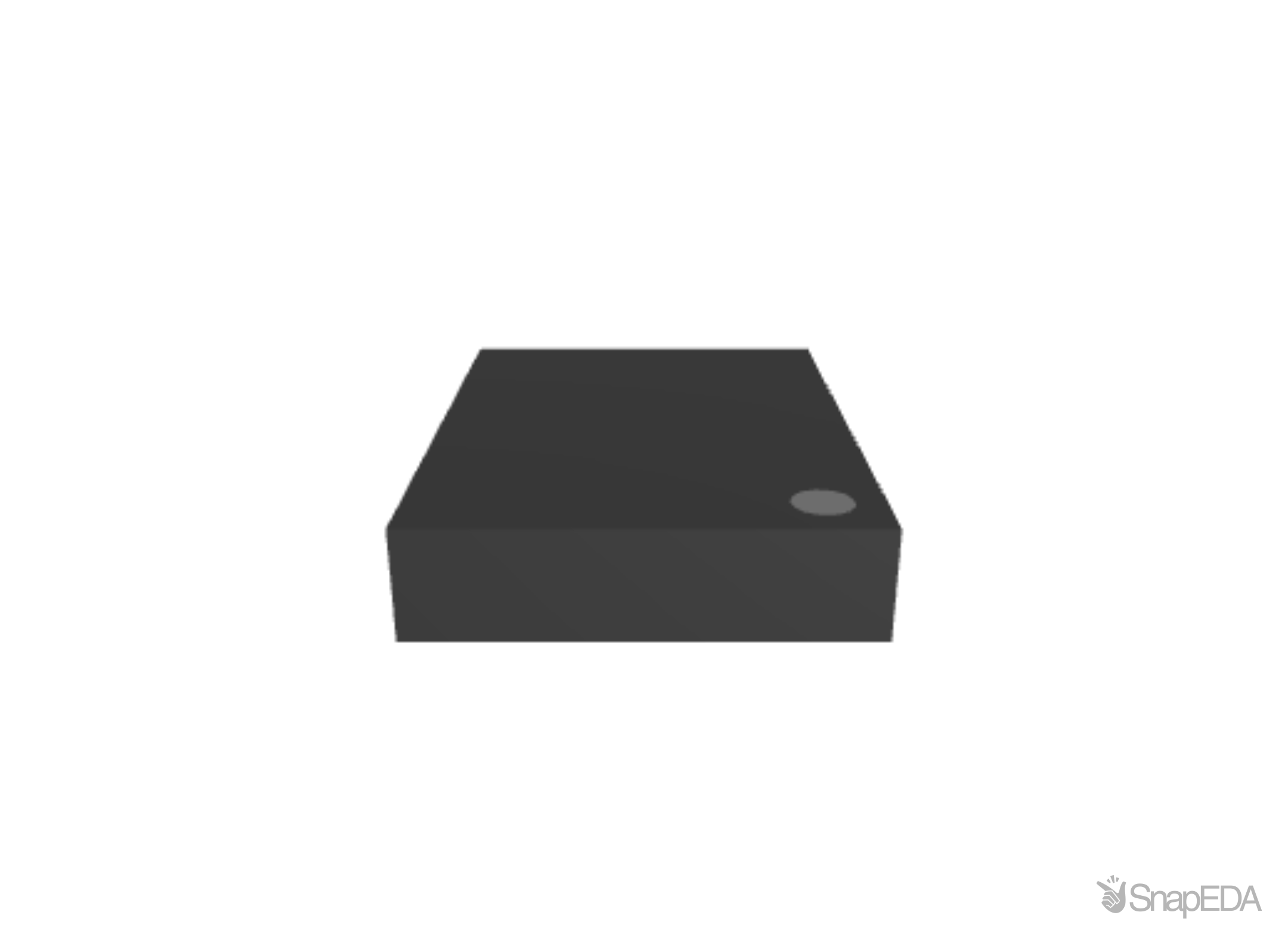

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LTC2486IDE#PBF
| Part Name | LTC2486IDE#PBF |
| Manufacturer | Analog Devices |
| Product Category | Multiplexed A/D Converters |
| Package | LFCSP:LEADFRM CHIP SCALE |
| MOQ | 1 |
| RoHS value | Yes |
| Part Launch Date | 1/23/2007 5:00:00 AM |
| Temperature Range | -40 to 85C |
| Product Link | https://www.analog.com/en/products/ltc2486.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Pins | 14 |
| Product Lifecycle | Production |
| RoHS | Y |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
