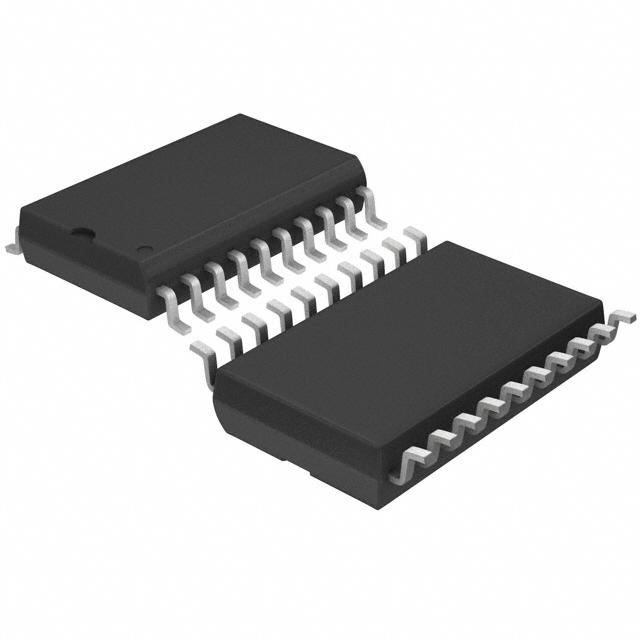

LTC2966ISW#PBF
The LTC2966 is a low current, high voltage dual channel voltage monitor. Internal high value resistors sense the input monitor pins providing a compact and low power solution for voltage monitoring. Each channel includes two comparator reference inputs (INH/INL) to allow configuration of a high and low threshold using an external resistive divider biased from the on-chip reference. Range selection pins are provided for each channel to set the internal resistive dividers for 5x, 10x, 20x and 40x scaling. The thresholds are scaled according to the range selection settings. Additionally, either INH or INL can be grounded to enable built-in hysteresis. Polarity selection pins allow each output to be inverted. The outputs are 100V capable and include a 500k pull-up resistor to an internal supply. Applications Portable Equipment Battery-Powered Equipment Telecom Systems Automotive/Industrial Electronics
Availability: In Stock
Package Type: SO-20
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LTC2966ISW#PBF by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

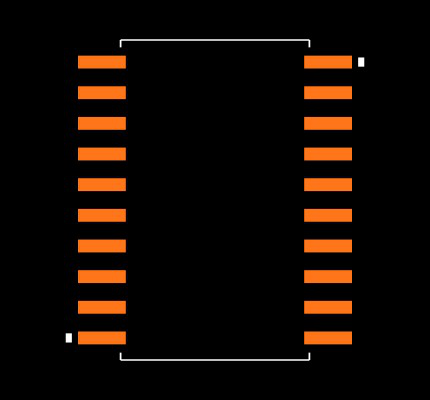

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LTC2966ISW#PBF
| Part Name | LTC2966ISW#PBF |
| Manufacturer | Analog Devices |
| Product Category | Dual-Supply Monitors |
| Package | SOIC 300 MIL |
| MOQ | 1 |
| RoHS value | Yes |
| Part Launch Date | 3/10/2015 2:45:56 PM |
| Temperature Range | -40 to 85C |
| Product Link | https://www.analog.com/en/products/ltc2966.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Pins | 2 |
| Product Lifecycle | Production |
| RoHS | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
