LTC3548EMSE#TRPBF
The LTC3548 is a dual, constant frequency, synchronous step down DC/DC converter. Intended for low power applications, it operates from 2.5V to 5.5V input voltage range and has a constant 2.25MHz switching frequency, allowing the use of tiny, low cost capacitors and inductors with a profile ≤1mm. Each output voltage is adjustable from 0.6V to 5V. Internal synchronous 0.35Ω, 0.7A/1.2A power switches provide high efficiency without the need for external Schottky diodes. A user selectable mode input is provided to allow the user to trade-off noise ripple for low power efficiency. Burst Mode operation provides high efficiency at light loads, while Pulse-Skipping Mode provides low noise ripple at light loads. To further maximize battery runtime, the P-channel MOSFETs are turned on continuously in dropout (100% duty cycle), and both channels draw a total quiescent current of only 40μA. In shutdown, the device draws <1μA. Features LTC3548A Improved Burst Mode, Improved ESD, 2 Adjustable Outputs LTC3548-2 One Fixed 1.8V Output, 1 Adjustable LTC3548-1 Fixed 1.8V and 1.575V Outputs LTC3548 2 Adjustable Outputs Applications PDAs/Palmtop PCs Digital Cameras Cellular Phones Portable Media Players PC Cards Wireless and DSL Modems
Availability: Out of Stock
Package Type: MSOP-10
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LTC3548EMSE#TRPBF by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates
Symbol
No web preview
This Symbol is Available for

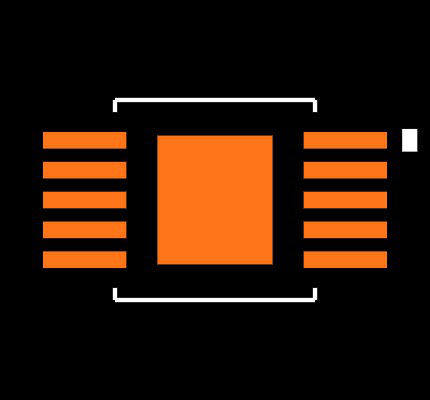

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LTC3548EMSE#TRPBF
| Part Name | LTC3548EMSE#TRPBF |
| Manufacturer | Analog Devices |
| Product Category | Multiple Output Buck Regulators |
| Package | EXPOSED PAD MINI_SOIC |
| MOQ | 0 |
| RoHS value | Yes |
| Part Launch Date | 3/18/2005 5:00:00 AM |
| Temperature Range | -40 to 125C |
| Product Link | https://www.analog.com/en/products/ltc3548.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Pins | 1 |
| Product Lifecycle | Production |
| RoHS | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet |
No issues have been reported for the LTC3548EMSE#TRPBF
