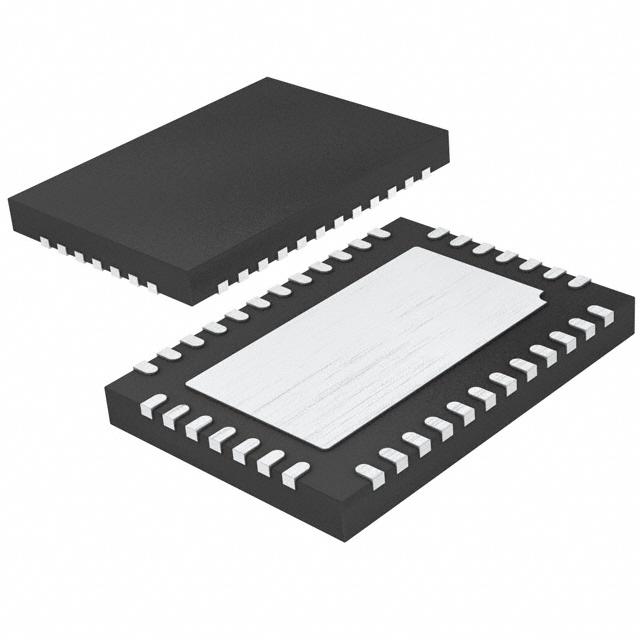

LTC3738CUHF#PBF
SWITCHING CONTROLLER, SMD, TSSOP38; Primary Input Voltage:7V; No. of Outputs:1; Output Voltage:32V; Output Current:60A; Voltage Regulator Case Style:QFN; No. of Pins:38; Operating Temperature Range:0°C to +85°C; SVHC:No SVHC (19-Dec-2011); Base Number:3738; Frequency:0.55MHz; Input Voltage Max:7V; Operating Temperature Max:85°C; Operating Temperature Min:0°C; Output Current Max:5A; Output Voltage Max:32V; Package / Case:QFN; Supply Voltage Max:7V; Supply Voltage Min:-0.3V; Termination Type:SMD; Voltage Regulator Type:Step Down (Buck); Voltage Vcc:7V
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LTC3738CUHF#PBF by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates
Symbol
No web preview
This Symbol is Available for

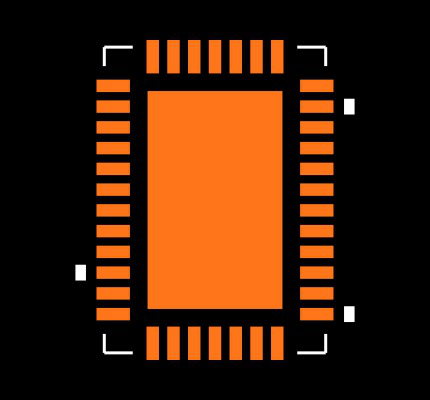

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LTC3738CUHF#PBF
| Part Name | LTC3738CUHF#PBF |
| Manufacturer | Analog Devices |
| Product Category | Digitally Programmable Regulators |
| Package | LFCSP:LEADFRM CHIP SCALE |
| MOQ | 0 |
| RoHS value | Yes |
| Part Launch Date | 6/22/2004 4:00:00 AM |
| Pins | 38 |
| Product Link | https://www.analog.com/en/products/ltc3738.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Temperature Range | 0 to 70C |
| Product Lifecycle | Production |
| RoHS | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the LTC3738CUHF#PBF
If you experienced any issues with the symbol or footprint, please report it.
