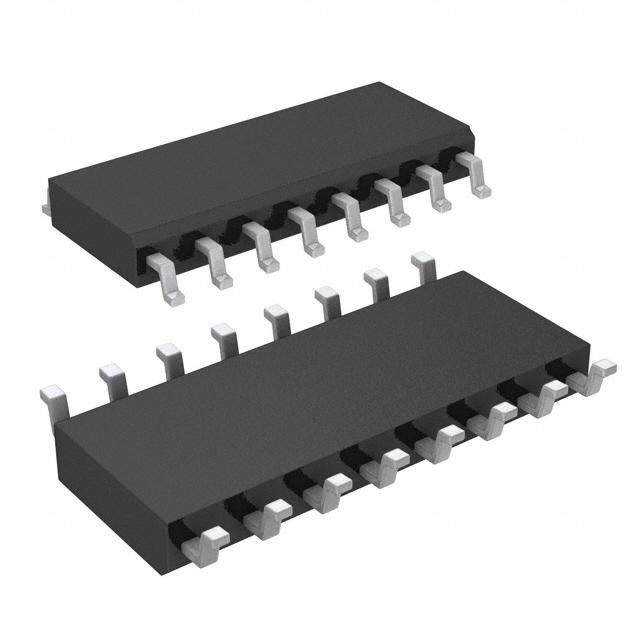

LTC4364CS-2#PBF
The LTC4364 surge stopper with ideal diode controller protects loads from high voltage transients. It limits and regulates the output during an overvoltage event, such as load dump in automobiles, by controlling the voltage drop across an external N-channel MOSFET pass device. The LTC4364 also includes a timed, current limited circuit breaker. In a fault condition, an adjustable fault timer must expire before the pass device is turned off. The LTC4364-1 latches off the pass device while the LTC4364-2 automatically restarts after a delay. The LTC4364 precisely monitors the input supply for overvoltage (OV) and undervoltage (UV) conditions. The external MOSFET is held off in undervoltage and auto-retry is disabled in overvoltage. An integrated ideal diode controller drives a second MOSFET to replace a Schottky diode for reverse input protection and output voltage holdup. The LTC4364 controls the forward voltage drop across the MOSFET and minimizes reverse current transients upon power source failure, brownout or input short. Applications Automotive/Avionic Surge Protection Hot Swap/Live Insertion Redundant Supply ORing Output Port Protection
Availability: Out of Stock
Package Type: SO-16
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LTC4364CS-2#PBF by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates
Symbol
No web preview
This Symbol is Available for

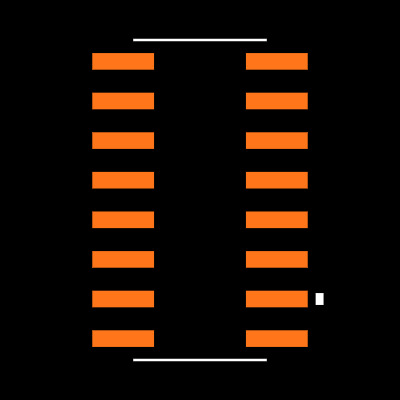

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LTC4364CS-2#PBF
| Part Name | LTC4364CS-2#PBF |
| Manufacturer | Analog Devices |
| Product Category | High Voltage Hot Swap Controllers |
| Package | SOIC 150 MIL |
| MOQ | 0 |
| RoHS value | Yes |
| Part Launch Date | 7/12/2012 1:20:52 PM |
| Pins | 16 |
| Product Link | https://www.analog.com/en/products/ltc4364.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Temperature Range | 0 to 70C |
| Product Lifecycle | Production |
| RoHS | Yes |
