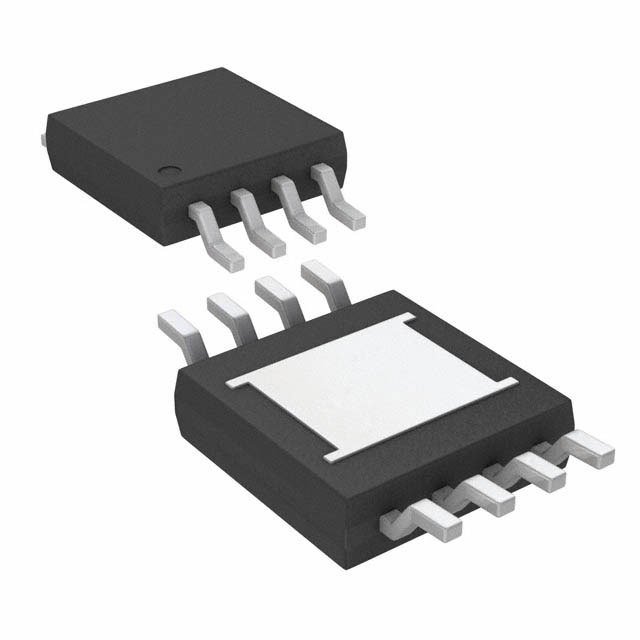

LTC4440EMS8E#PBF
MOSFET DRVR 2.4A 1-OUT Hi Side Full Brdg Non-Inv 8-Pin MSOP EP
Availability: Out of Stock
Package Type: MSOP-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LTC4440EMS8E#PBF by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

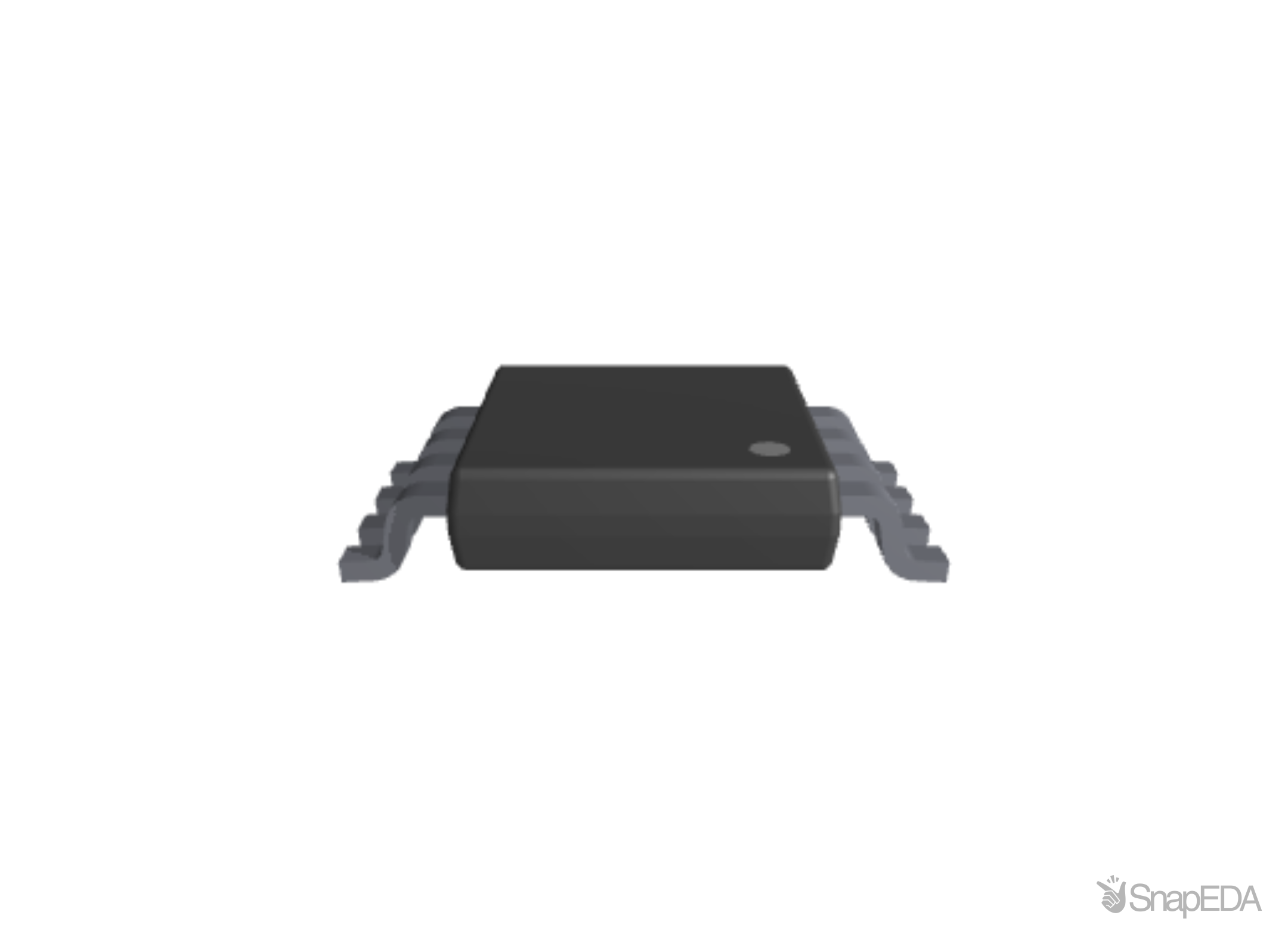

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LTC4440EMS8E#PBF
| Part Name | LTC4440EMS8E#PBF |
| Manufacturer | Analog Devices |
| Product Category | High-Side Switches and MOSFET Drivers |
| Package | EXPOSED PAD MINI_SOIC |
| MOQ | 1 |
| RoHS value | Yes |
| Part Launch Date | 9/29/2003 4:00:00 AM |
| Pins | 8 |
| Product Link | https://www.analog.com/en/products/ltc4440.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Temperature Range | -40 to 125C |
| Product Lifecycle | Production |
| RoHS | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Polarity | Non-Inverting |
| Number Of Outputs | 1 |
| Mounting Type | Surface Mount |
| Bridge Type | Full Bridge |
| High And Low Sides Dependency | Independent |
| Logic Type | CMOS, TTL |
| Number Of Drivers | 1 |
| Pin Count | 8 |
| Package Type | MSOP |
| Driver Type | MOSFET |
| Topology | High Side |
| Output Current (A) | 2.4 A |
| Supply Voltage (V) | 72 (V) |
