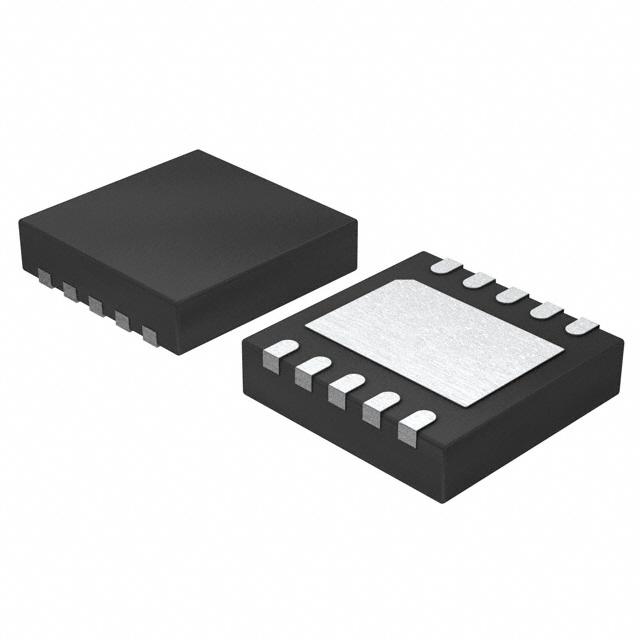

LTC6078CDD#TRPBF
The LTC6078/LTC6079 are dual/quad, low offset, low noise operational amplifiers with low power consumption and rail-to-rail input/output swing. Input offset voltage is trimmed to less than 25μV and the CMOS inputs draw less than 50pA of bias current. The low offset drift, excellent CMRR, and high voltage gain make it a good choice for precision signal conditioning. Each amplifier draws only 54μA current on a 3V supply. The micropower, rail-to-rail operation of the LTC6078/LTC6079 is well suited for portable instruments and single supply applications. The LTC6078/LTC6079 are specified on power supply voltages of 3V and 5V from -40 to 125°C. The dual amplifier LTC6078 is available in 8-lead MSOP and 10-lead DFN packages. The quad amplifier LTC6079 is available in 16-lead SSOP and DFN packages. Applications Photodiode Amplifier High Impedance Sensor Amplifier Microvolt Accuracy Threshold Detection Instrumentation Amplifiers Battery Powered Applications
Availability: In Stock
Package Type: DFN -10
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LTC6078CDD#TRPBF by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

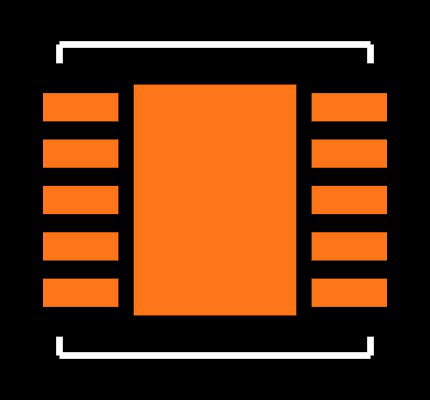

Footprint
No web preview
This Footprint is Available for

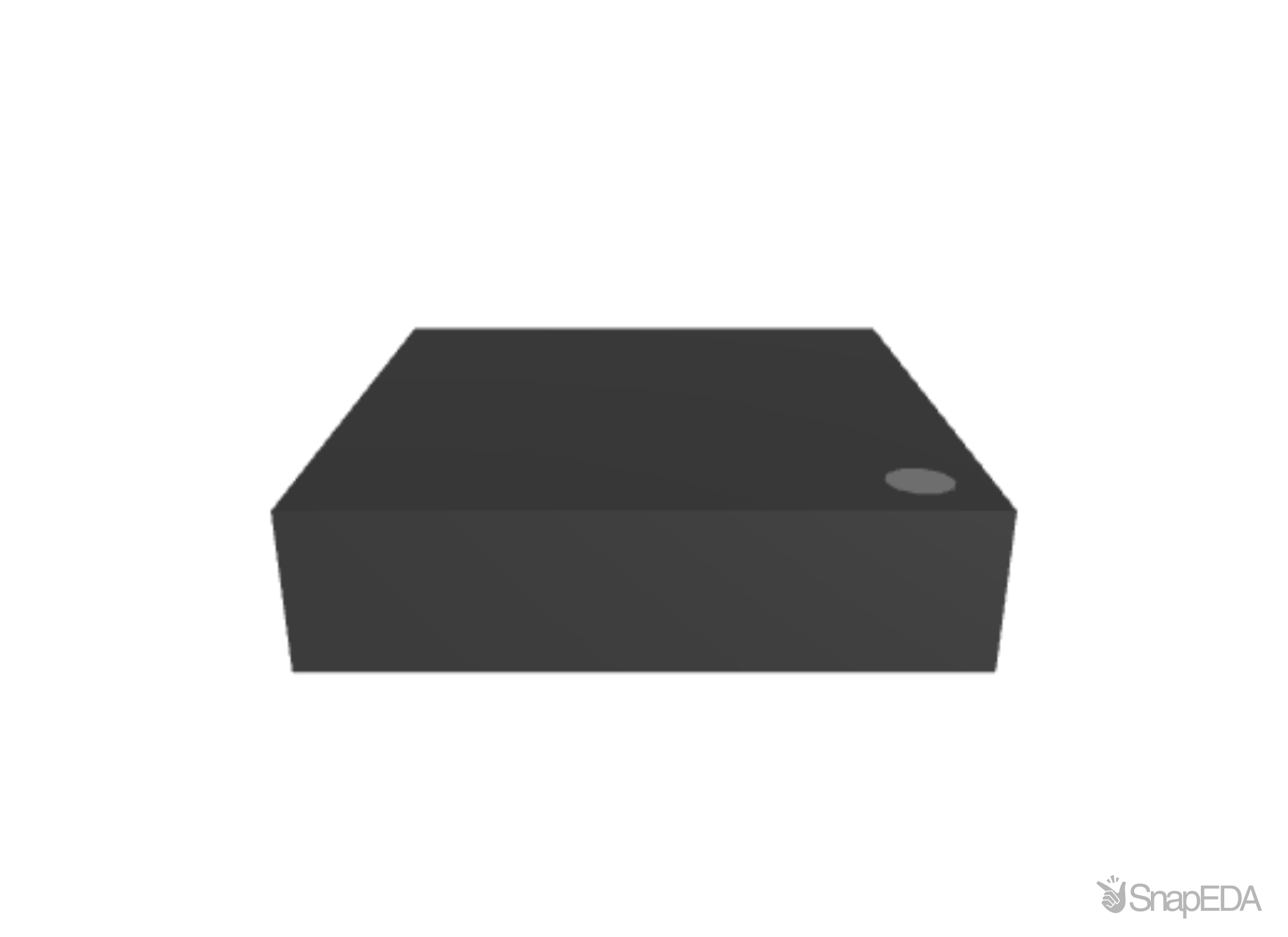

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LTC6078CDD#TRPBF
| Part Name | LTC6078CDD#TRPBF |
| Manufacturer | Analog Devices |
| Product Category | Low Input Bias Current Op Amps (≤100 pA) |
| Package | LFCSP:LEADFRM CHIP SCALE |
| MOQ | 1 |
| RoHS value | Yes |
| Part Launch Date | 8/16/2005 4:00:00 AM |
| Pins | 1 |
| Product Link | https://www.analog.com/en/products/ltc6078.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Temperature Range | 0 to 70C |
| Product Lifecycle | Production |
| RoHS | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
