LTC6081IDD#PBF
IC, AMP, R/R I/O DUAL, SMD, DFN-10; Op Amp Type:Precision; No. of Amplifiers:2; Bandwidth:3.6MHz; Slew Rate:1V/µs; Supply Voltage Range:2.7V to 5.5V; No. of Pins:10; Operating Temperature Range:-40°C to +85°C; SVHC:No SVHC (19-Dec-2011); Base Number:6081; Gain Bandwidth:3.6MHz; I/O Type:Rail-Rail I/O; Package / Case:DFN; Slew Rate:1V/µs; Supply Voltage Max:5.5V; Supply Voltage Min:2.7V; Termination Type:SMD
Availability: In Stock
Package Type: DFN -10
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LTC6081IDD#PBF by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

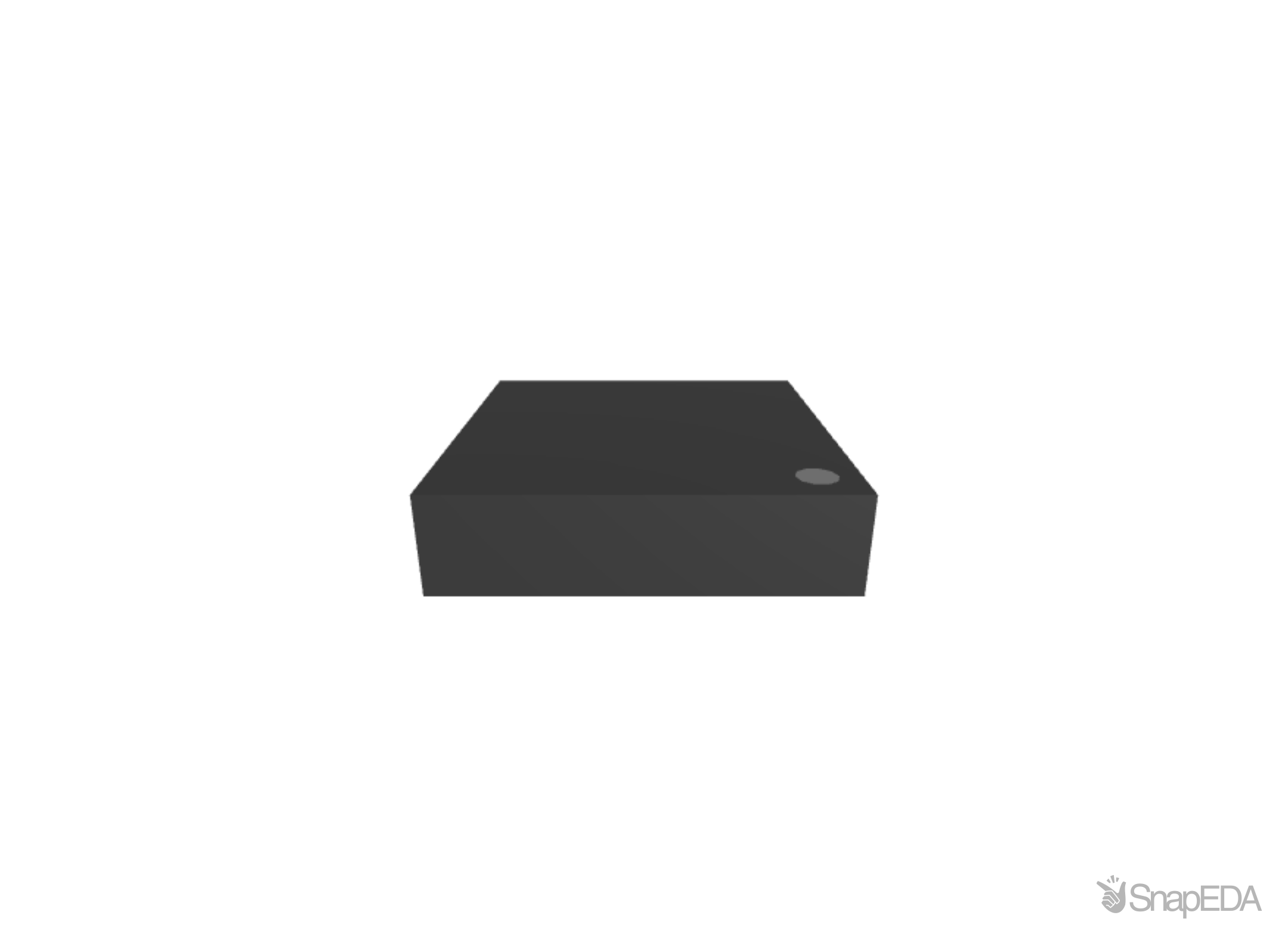

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LTC6081IDD#PBF
| Part Name | LTC6081IDD#PBF |
| Manufacturer | Analog Devices |
| Product Category | Low Power Op Amps (≤ 1mA/amp) |
| Package | LFCSP:LEADFRM CHIP SCALE |
| MOQ | 1 |
| RoHS value | Yes |
| Part Launch Date | 8/6/2007 7:45:43 PM |
| Temperature Range | -40 to 85C |
| Product Link | https://www.analog.com/en/products/ltc6081.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Pins | 1 |
| Product Lifecycle | Production |
| RoHS | Y |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the LTC6081IDD#PBF by Analog Devices from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
310
|
|
Visit Site | |
|
★ Featured
|
684
|
|
Visit Site | |
| Analog Devices |
7,443
|
|
Visit Site | |
| Arrow Electronics |
16
|
121 x $3.64
|
Visit Site | |
| Farnell UK |
66
|
|
Visit Site | |
| Newark |
66
|
|
Visit Site | |
| Richardson RFPD |
|
121 x $3.88
|
Visit Site | |
| Verical |
25
|
25 x $3.18
|
Visit Site | |
| element14 Singapore |
66
|
|
Visit Site |
No issues have been reported for the LTC6081IDD#PBF
