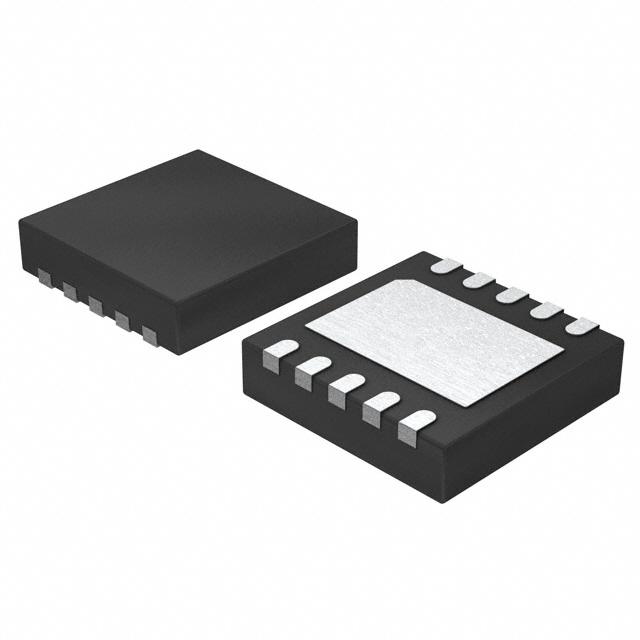

LTC6087CDD#PBF
The LTC6087/LTC6088 are dual/quad, low noise, low offset, rail-to-rail input/output, unity-gain stable CMOS operational amplifiers that feature 1pA of input bias current. A 14MHz gain bandwidth and 7.2V/μs slew rate, combined with low noise (10nV/√Hz) and a low 0.75mV offset, make the LTC6087/LTC6088 useful in a variety of applications. The 1.05mA supply current and the shutdown mode are ideal for signal processing applications which demand performance with minimal power. The LTC6087/LTC6088 has an output stage which swings within 30mV of either supply rail to maximize signal dynamic range in low supply applications. The input common mode range includes the entire supply voltage. These op amps are specified on power supply voltages of 3V and 5V from –40°C to 125°C. The dual amplifier LTC6087 is available in 8-lead MSOP and 10-lead DFN packages. The quad amplifier LTC6088 is available in 16-lead SSOP and DFN packages. Applications Portable Test Equipment Medical Equipment Audio Data Acquisition High Impedance Transducer Amplifier
Availability: In Stock
Package Type: DFN-10
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LTC6087CDD#PBF by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

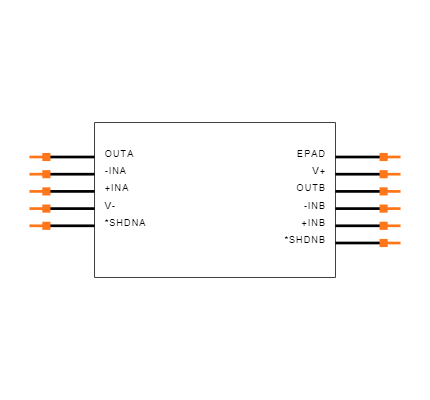

Symbol
No web preview
This Symbol is Available for

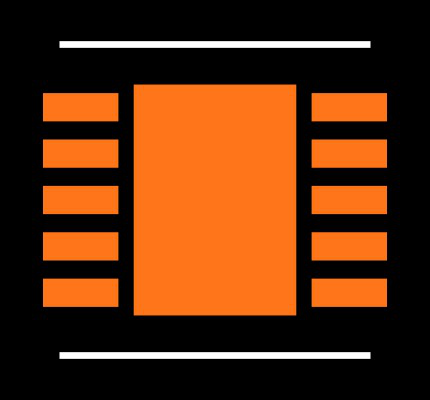

Footprint
No web preview
This Footprint is Available for

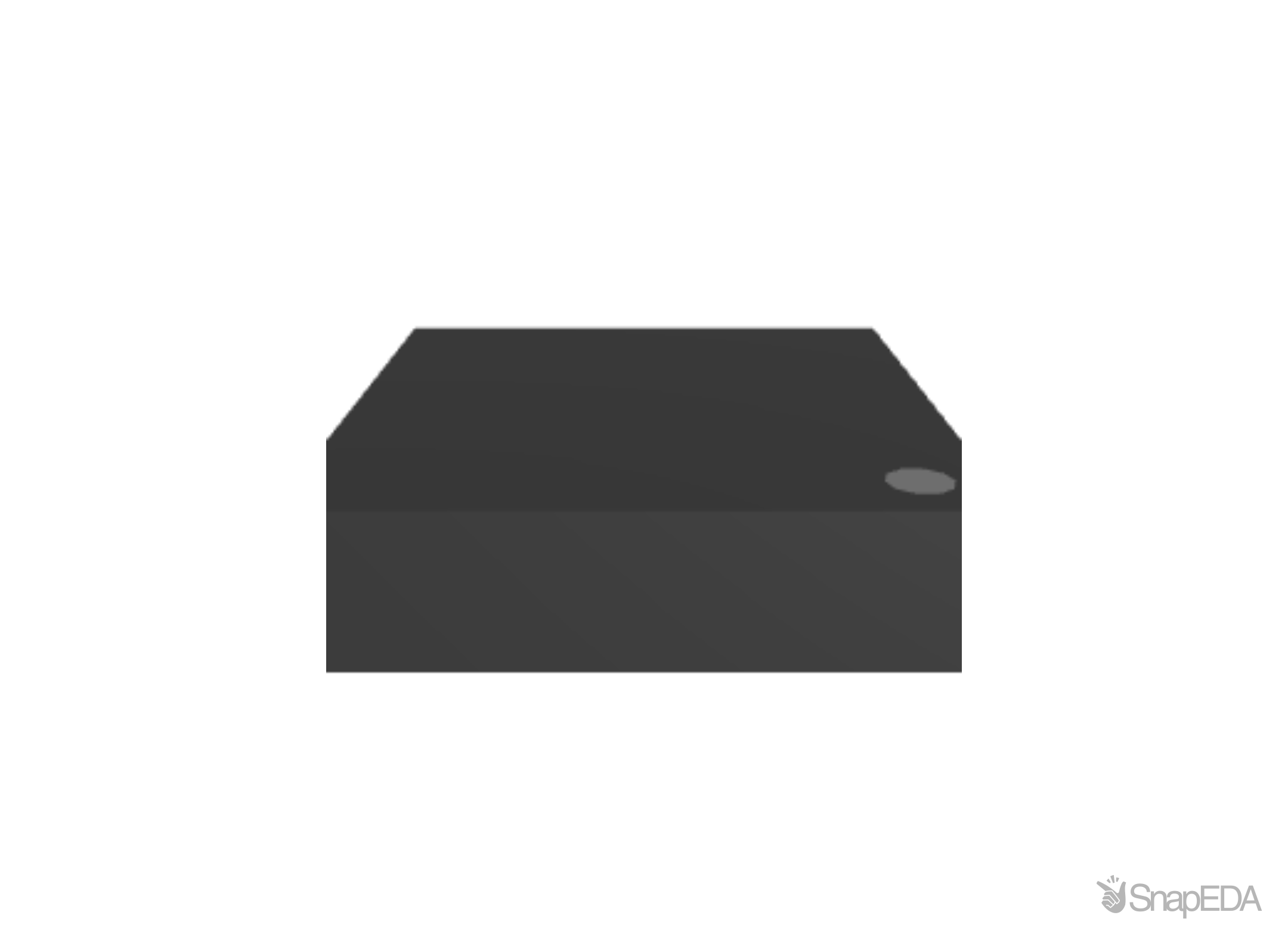

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LTC6087CDD#PBF
| Part Name | LTC6087CDD#PBF |
| Manufacturer | Analog Devices |
| Product Category | Rail-to-Rail Op Amps |
| Package | LFCSP:LEADFRM CHIP SCALE |
| MOQ | 1 |
| RoHS value | Yes |
| Part Launch Date | 9/5/2007 8:59:03 PM |
| Pins | 1 |
| Product Link | https://www.analog.com/en/products/ltc6087.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Temperature Range | 0 to 70C |
| Product Lifecycle | Production |
| RoHS | Y |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet |
