LTC6241HVCS8#PBF
Operational Amplifier IC; No. of Amplifiers:2; Op Amp Type:CMOS; Slew Rate:10V/µs; Supply Voltage Max:11V; No. of Pins:8; Operating Temperature Range:-40°C to +125°C; Amplifier Type:CMOS; Bandwidth:18MHz ;RoHS Compliant: Yes
Availability: In Stock
Package Type: SOIC -8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LTC6241HVCS8#PBF by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

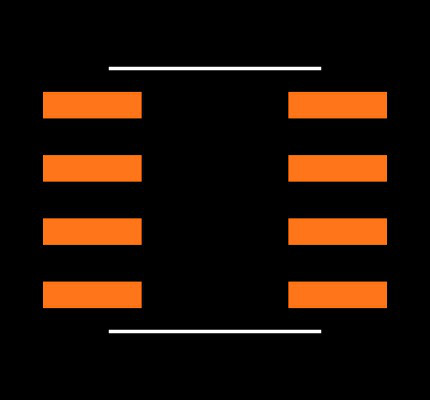

Footprint
No web preview
This Footprint is Available for

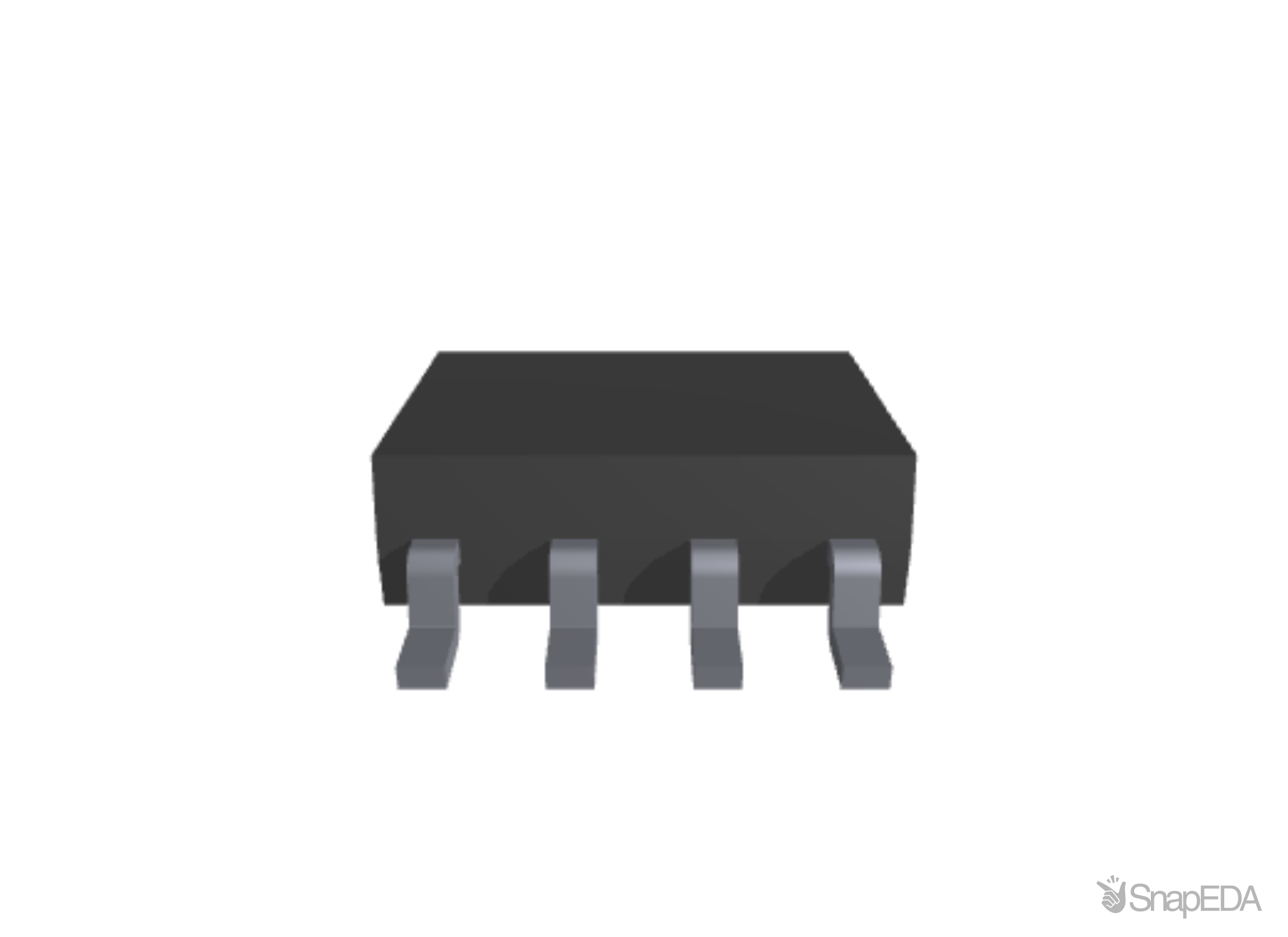

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LTC6241HVCS8#PBF
| Part Name | LTC6241HVCS8#PBF |
| Manufacturer | Analog Devices |
| Product Category | Low Input Bias Current Op Amps (≤100 pA) |
| Package | SOIC 150 MIL |
| MOQ | 1 |
| RoHS value | Yes |
| Part Launch Date | 6/27/2005 4:00:00 AM |
| Pins | 8 |
| Product Link | https://www.analog.com/en/products/ltc6241.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Temperature Range | 0 to 70C |
| Product Lifecycle | Production |
| RoHS | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Typical Voltage Gain (V) | 128.6 dB |
| Typical Dual Supply Voltage (V) | ±5.5 (V) |
| Typical Input Voltage Noise Density (V) | 7 (nV/√Hz) |
| Dimensions | 5.004 x 3.988 x 1.752 (mm) |
| Mounting Type | Surface Mount |
| Typical Slew Rate | 10 (V/µs) |
| Power Supply Type | Dual, Single |
| Number Of Channels Per Chip | 2 |
| Rail To Rail | Rail to Rail Output |
| Typical Gain Bandwidth Product | 18 (MHz) |
| Typical Single Supply Voltage (V) | 2.8 V |
| Width | 3.988 (mm) |
| Length | 5 (mm) |
| Package Type | SOIC |
| Minimum Operating Temperature | 0 °C |
| Amplifier Type | CMOS |
| Height | 1.752 (mm) |
| Maximum Operating Temperature | +70 °C |
| Pin Count | 8 |
Inventory for the LTC6241HVCS8#PBF by Analog Devices from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
170
|
|
Visit Site | |
|
★ Featured
|
1,871
|
|
Visit Site | |
| Arrow Electronics |
100
|
|
Visit Site |
No issues have been reported for the LTC6241HVCS8#PBF
If you experienced any issues with the symbol or footprint, please report it.
