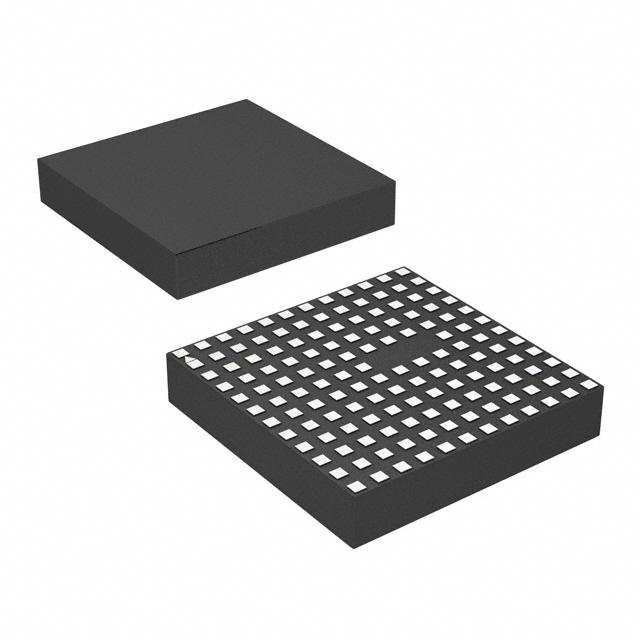

LTM4607EV#PBF
36VIN, 24VOUT High Efficiency Buck-Boost DC/DC µModule (Power Module)
Availability: Out of Stock
Package Type: LGA -141
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LTM4607EV#PBF by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LTM4607EV#PBF
| Part Name | LTM4607EV#PBF |
| Manufacturer | Analog Devices |
| Product Category | µModule Buck-Boost Regulators |
| Package | LGA/CASON/CH ARRY SO NO LD |
| MOQ | 1 |
| RoHS value | Yes |
| Part Launch Date | 11/9/2007 10:04:33 PM |
| Pins | 141 |
| Product Link | https://www.analog.com/en/products/ltm4607.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Temperature Range | -40 to 125C |
| Product Lifecycle | Production |
| RoHS | Y |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Number Of Outputs | 1 |
| Load Regulation | 0.5 % |
| Dimensions | 15 x 15 x 2.92 (mm) |
| Mounting Type | Surface Mount |
| Efficiency | 98 (%) |
| Regulator Type | Buck Boost Switching |
| Output Type | Adjustable |
| Maximum Switching Frequency | 440 kHz |
| Switching Regulator | Yes |
| Width | 15 (mm) |
| Length | 15 (mm) |
| Output Voltage (V) | 0.8 → 24 V |
| Package Type | LGA |
| Regulator Function | Boost/Buck Controller, Inverting, Non-Inverting |
| Minimum Operating Temperature | -40 °C |
| Minimum Input Voltage (V) | 4.5 V |
| Height | 2.92 (mm) |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 141 |
| Maximum Input Voltage (V) | 36 V |
| Line Regulation | 0.02 %/V |
No issues have been reported for the LTM4607EV#PBF
If you experienced any issues with the symbol or footprint, please report it.
